Star Wars Cockpit Schematic Package 1st Edition, Scanned by Dezbaz, 2021
300DPI (Edited 8-August-2021)

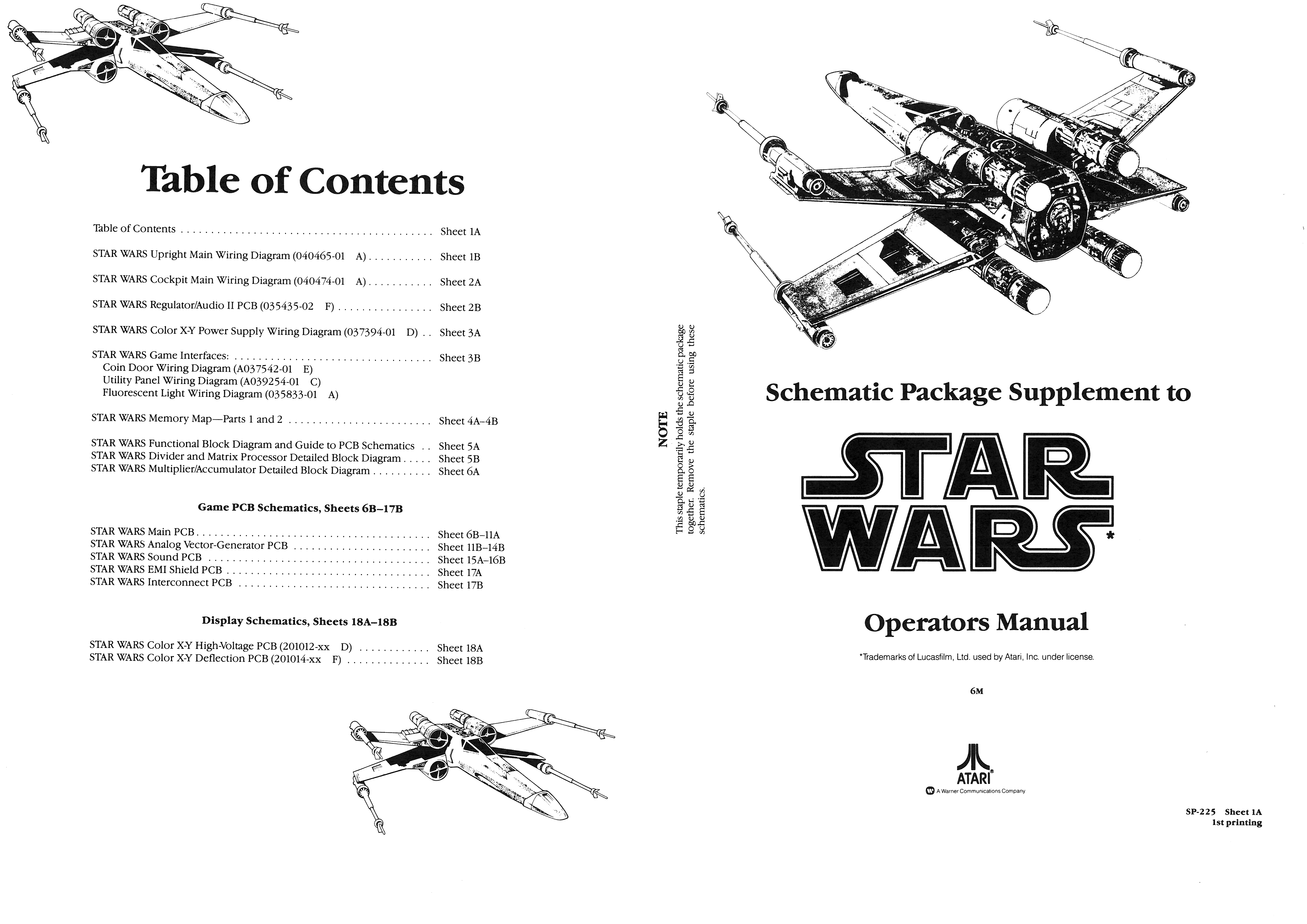

Page 1A | Table of Contents |

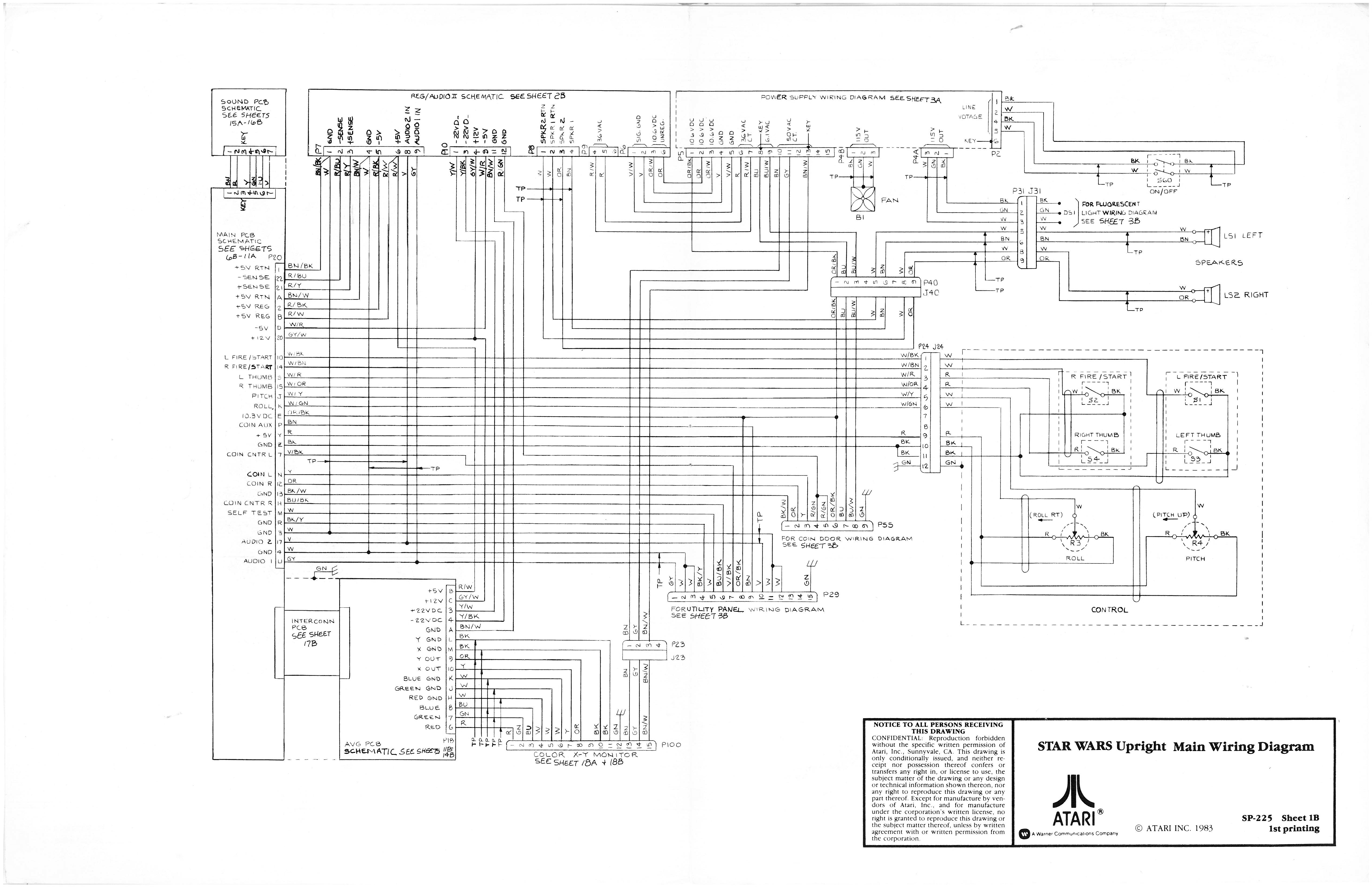

Page 1B | Star Wars Upright Main Wiring Diagram |

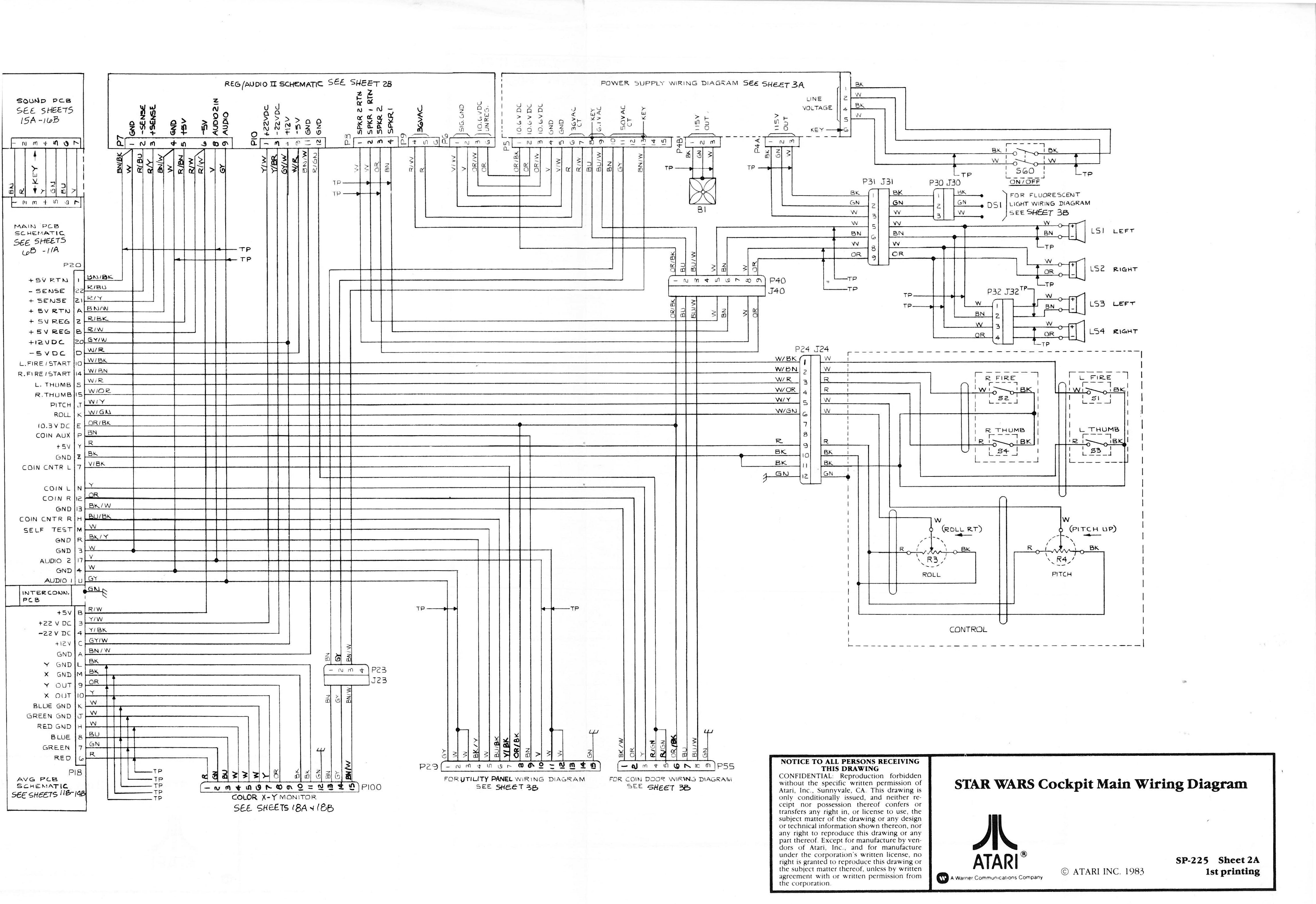

Page 2A | Star Wars Cockpit Main Wiring Diagram |
Page 2B | Star Wars Regulator/Audio II PCB Wiring Diagram |

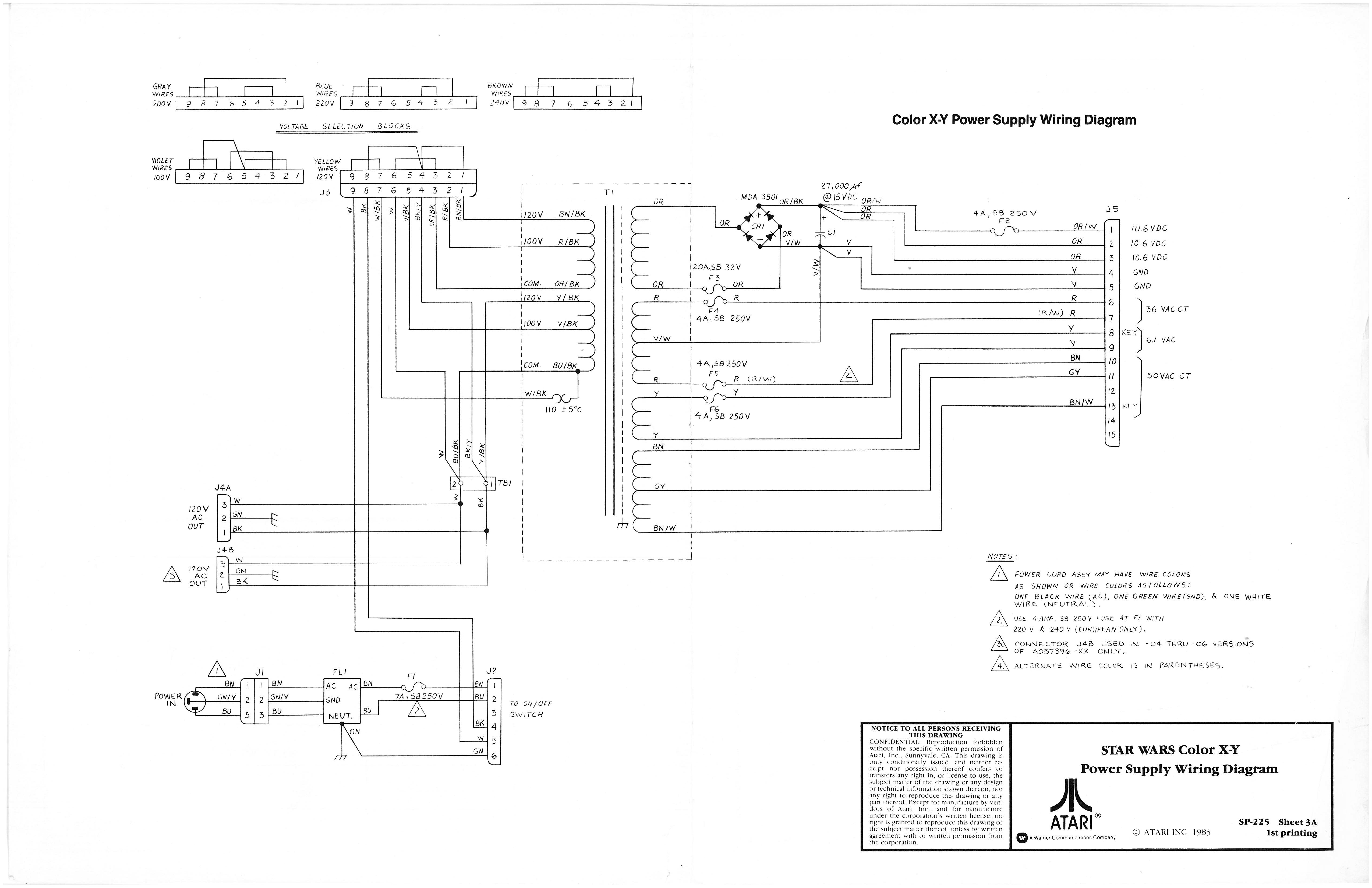

Page 3A | Star Wars Color X-Y Power Supply Wiring Diagram |

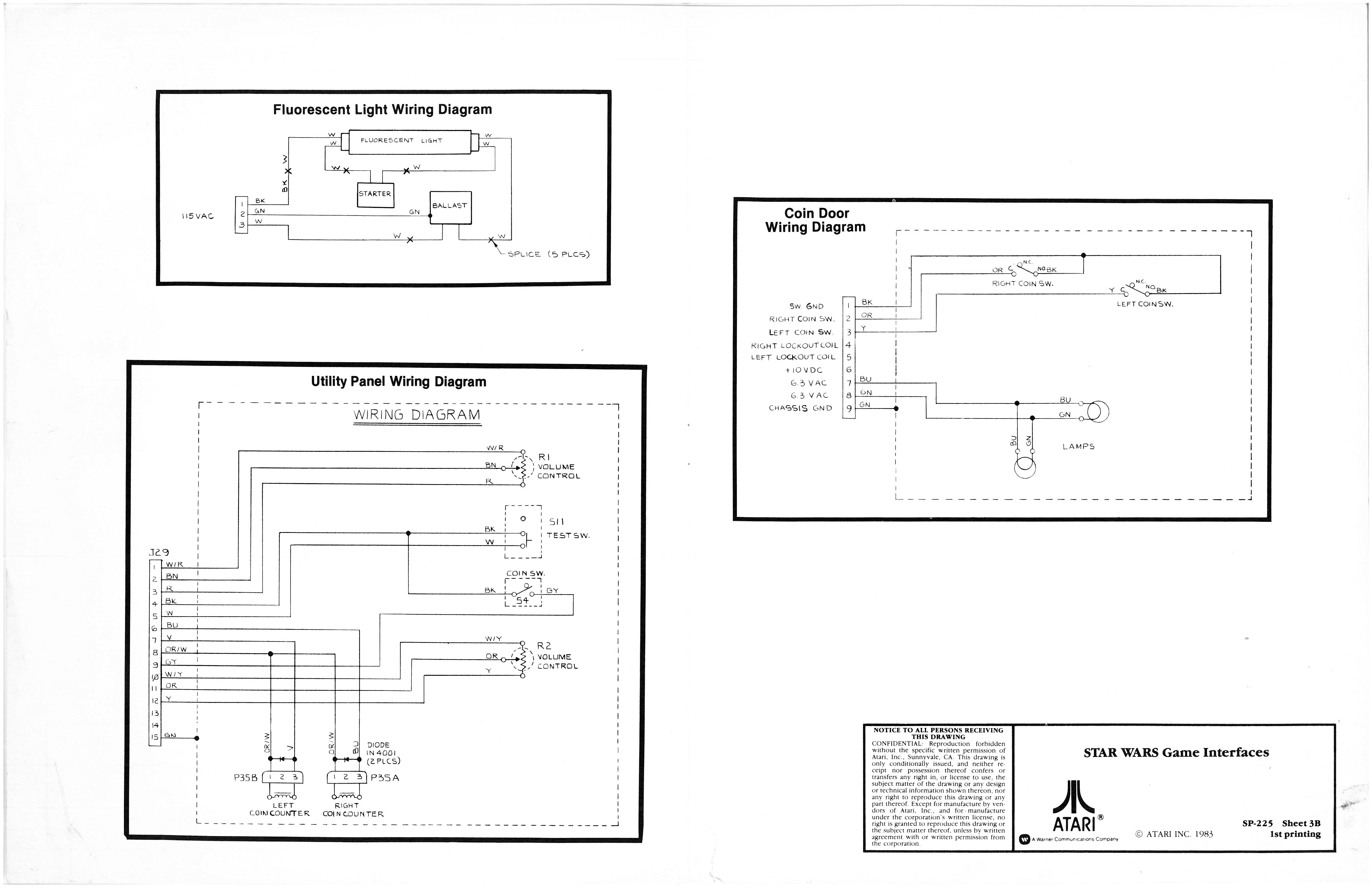

Page 3B | Star Wars Game Interfaces |

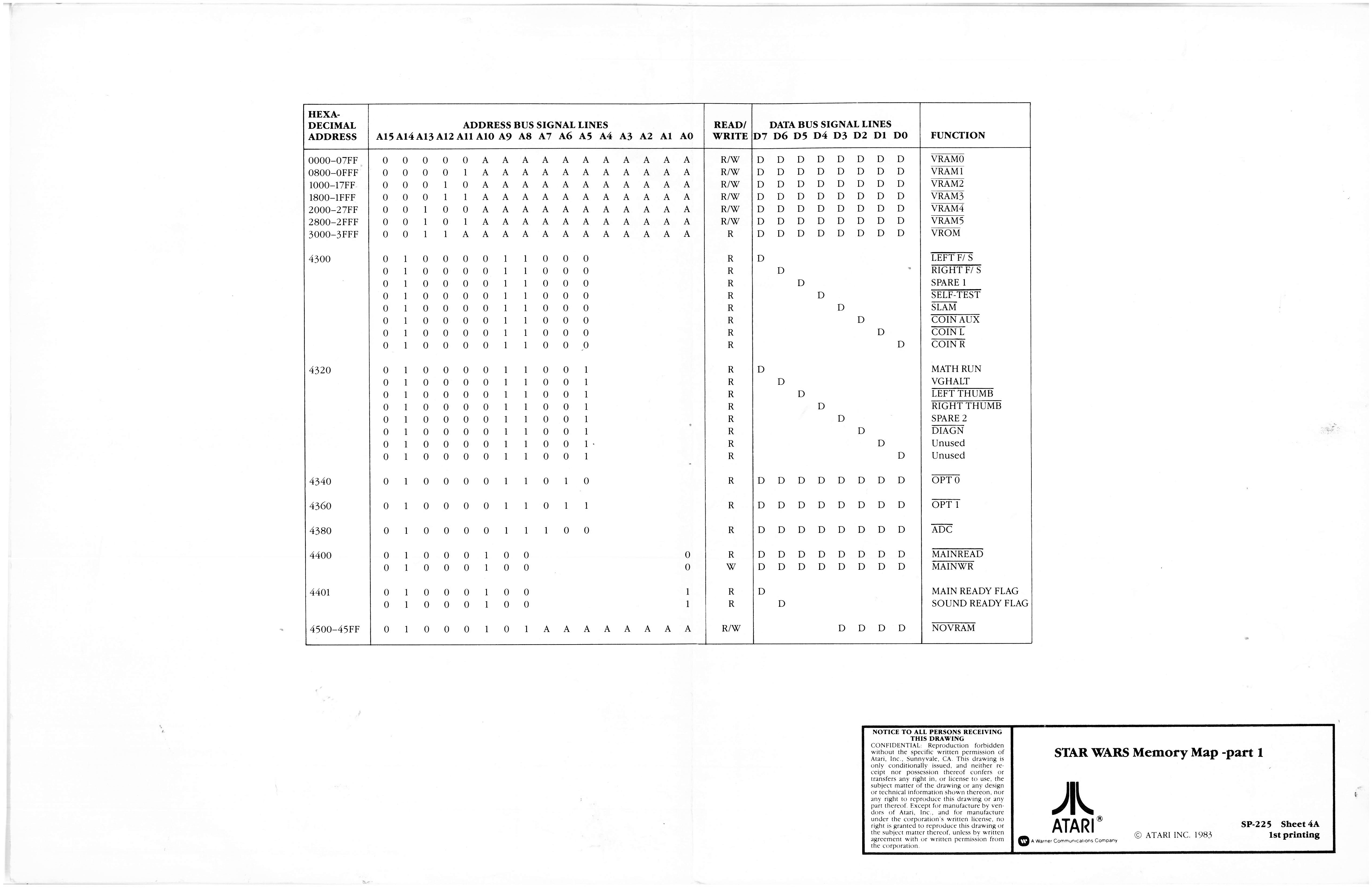

Page 4A | Star Wars Memory Map - part 1 |
Page 4B | Star Wars Memory Map - part 2 |

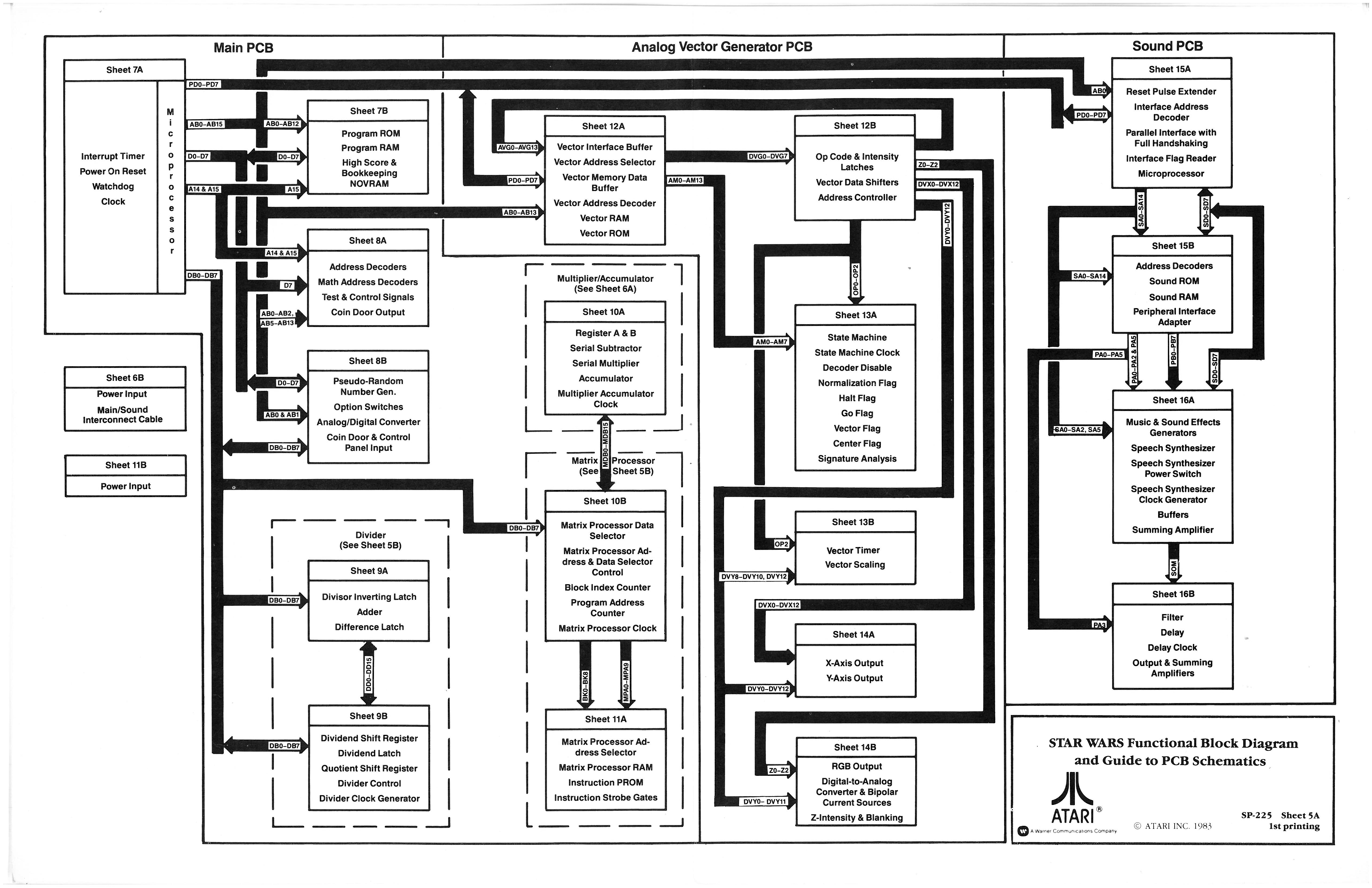

Page 5A | S/W Functional Block Diagram & Guide to PCB Schematics |

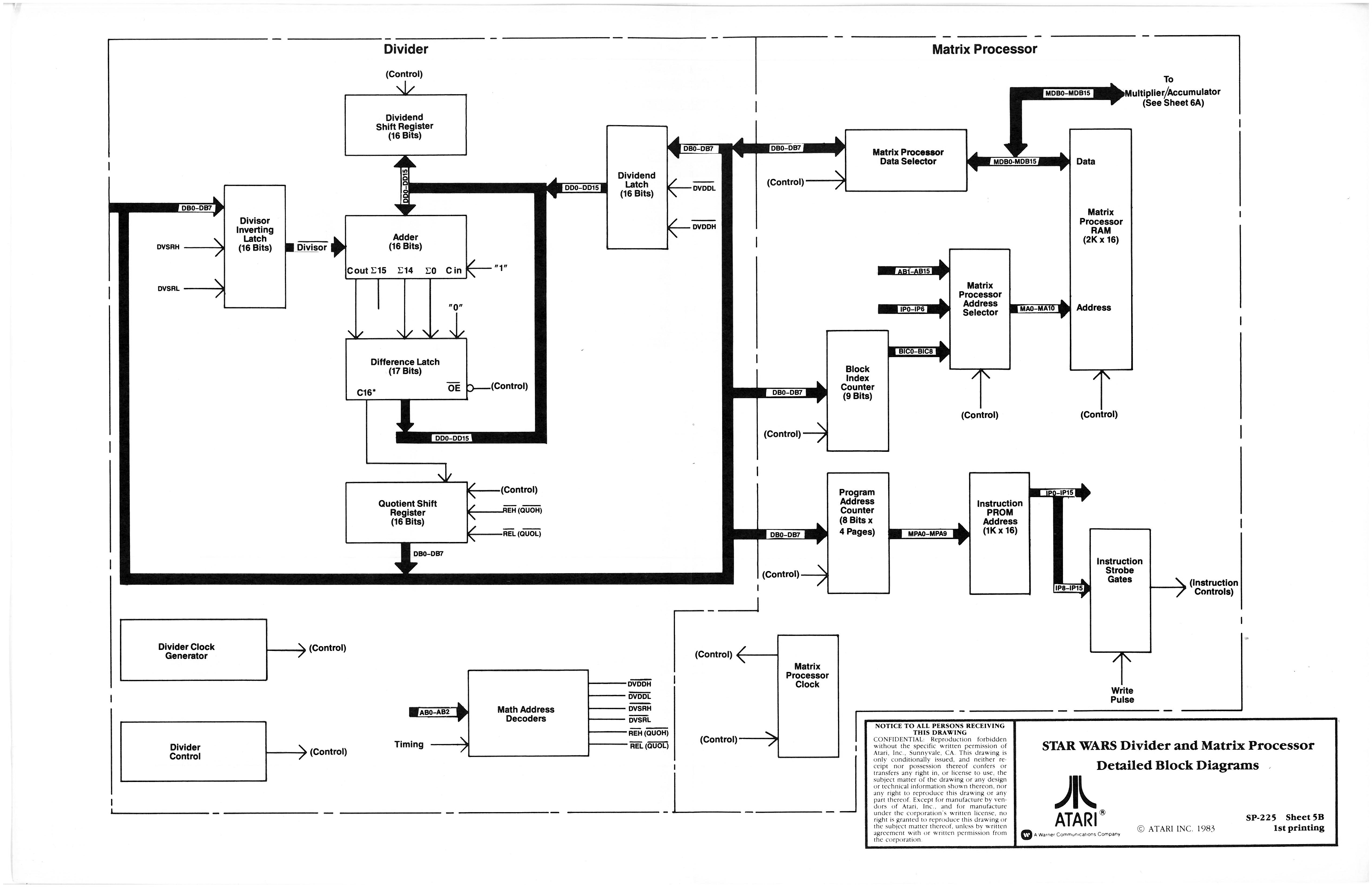

Page 5B | S/W Divider & Matrix Processor Detailed Block Diagrams |

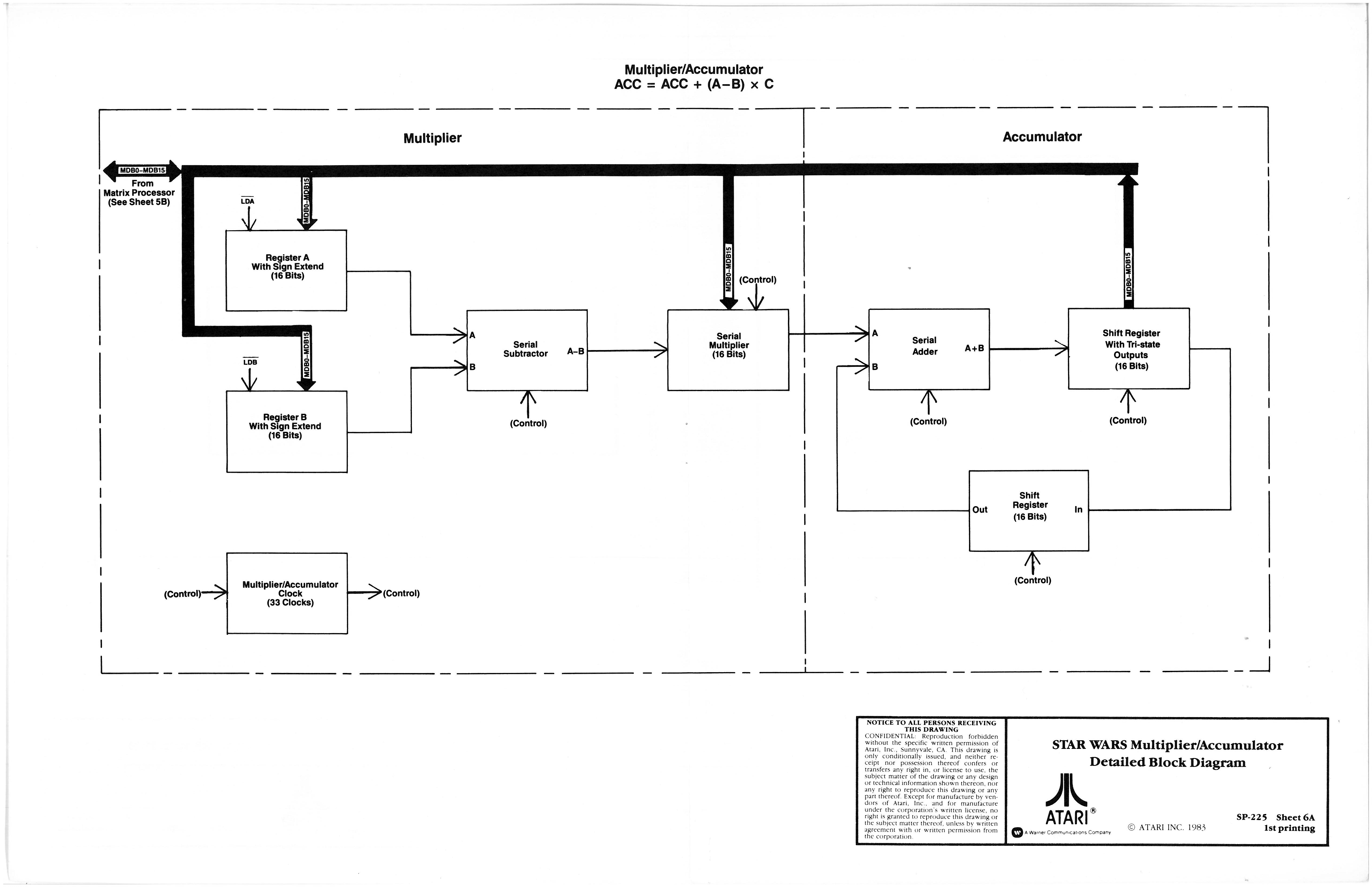

Page 6A | S/W Multiplier/Accumulator Detailed Block Diagram |
Page 6B | S/W Main PCB: Power Input & Sound Interconnect Cable |

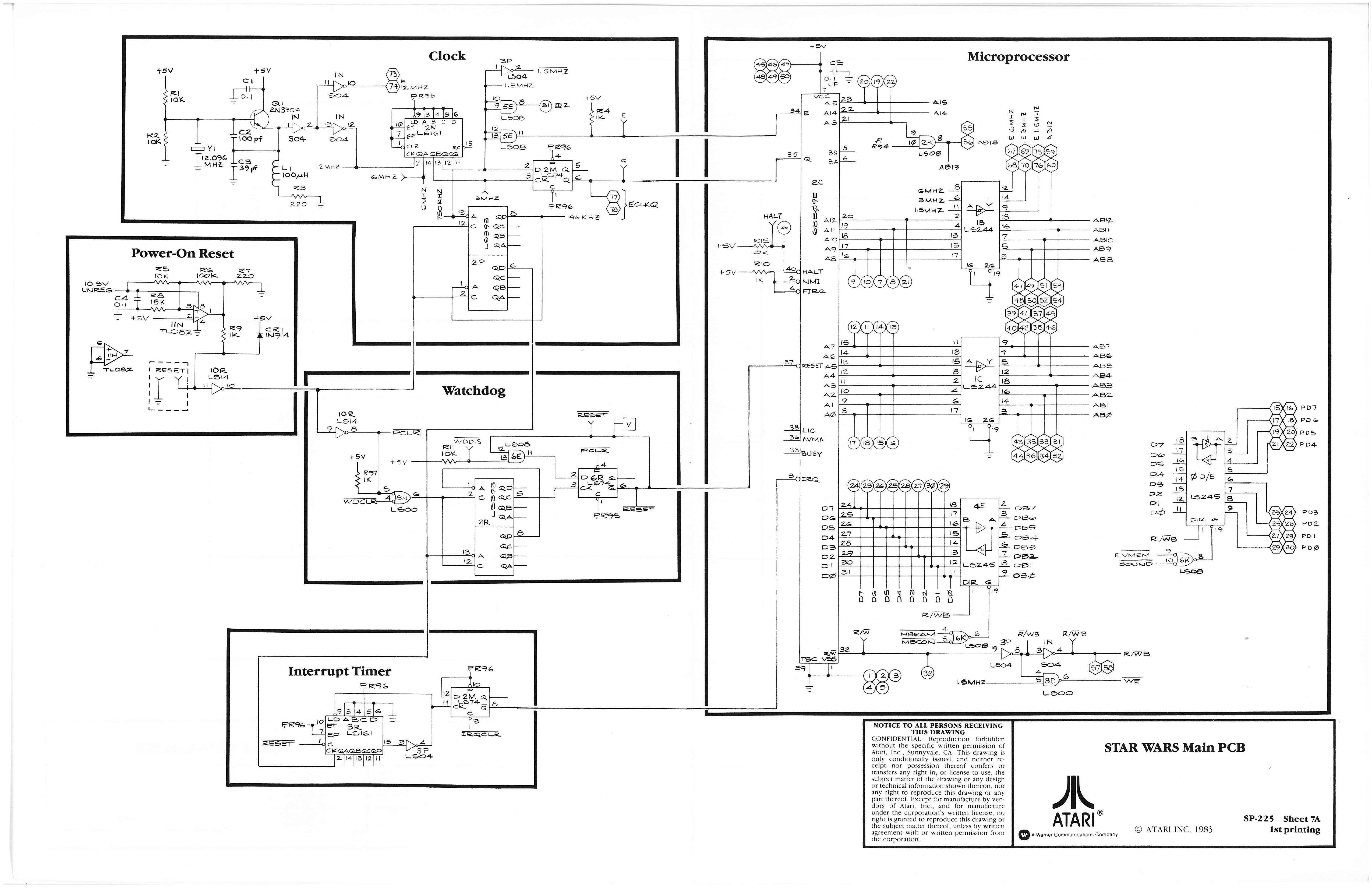

Page 7A | S/W Main PCB: Clock, Microprocessor, Power-On Reset, Watchdog & Interrupt Timer |

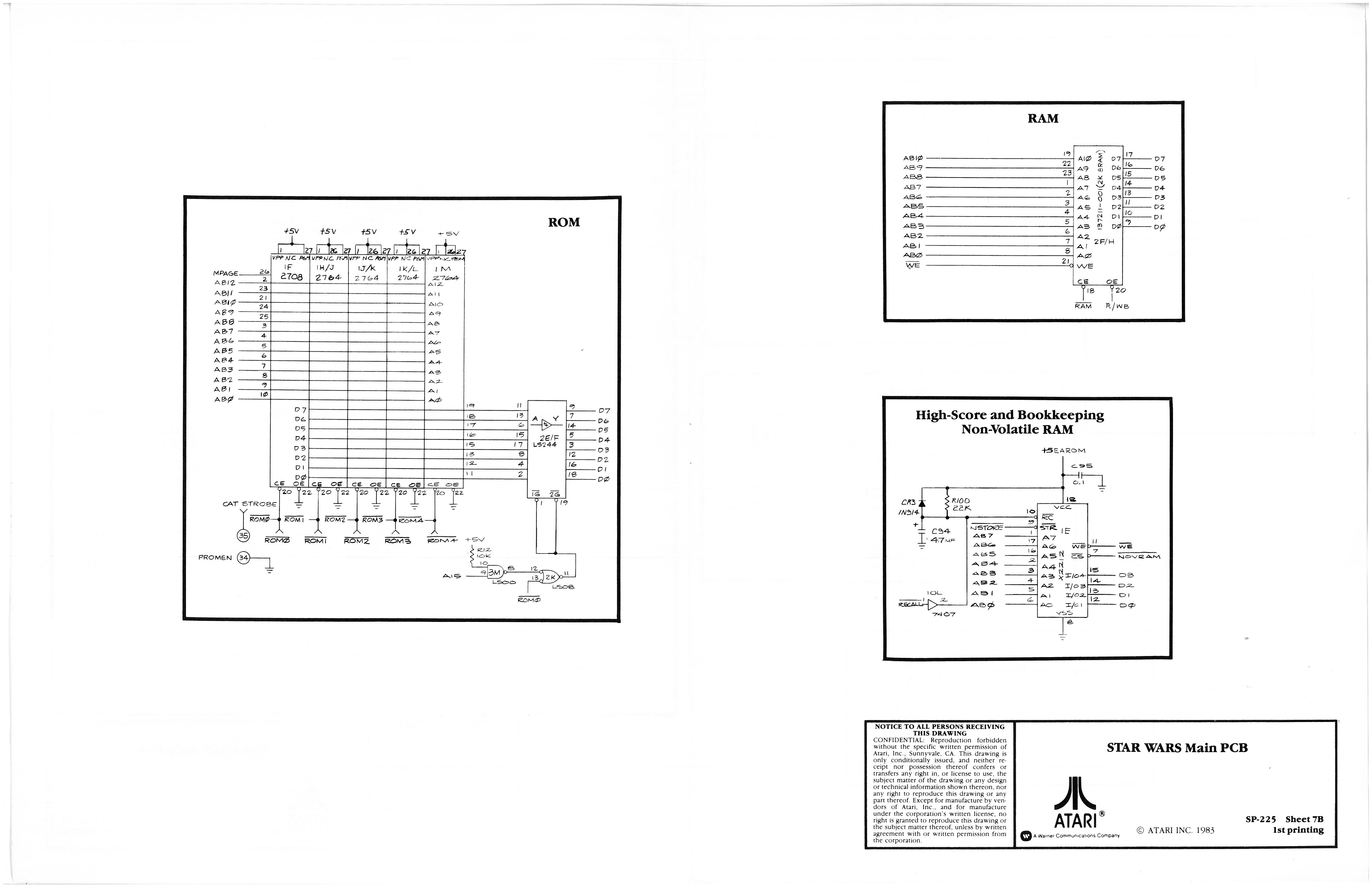

Page 7B | S/W Main PCB: ROM, RAM, High-Score & Bookkeeping Non-Volatile RAM |

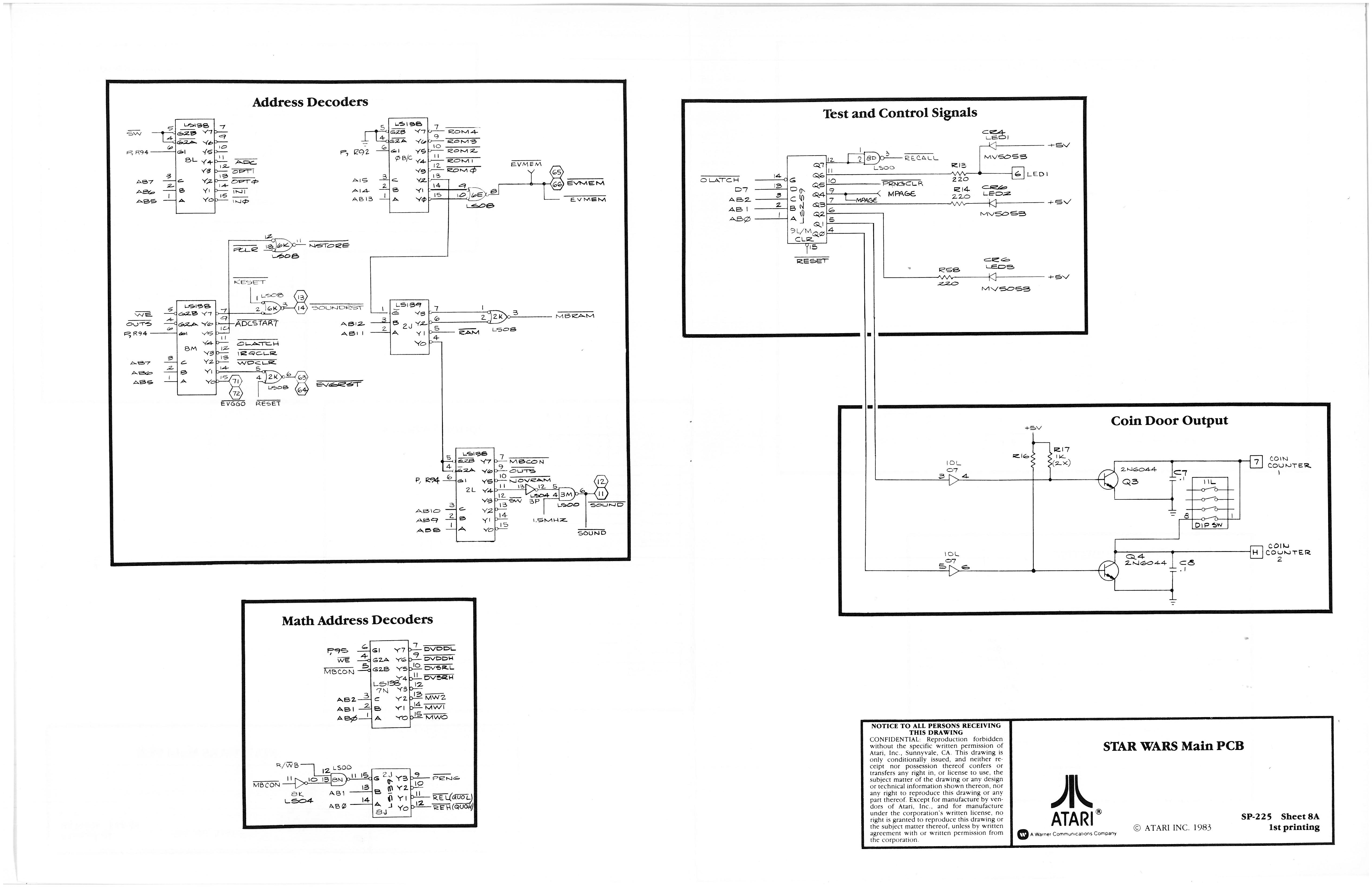

Page 8A | S/W Main PCB: Address Decoders, Test & Control Signals, Coin Door Output & Math Address Decoders |

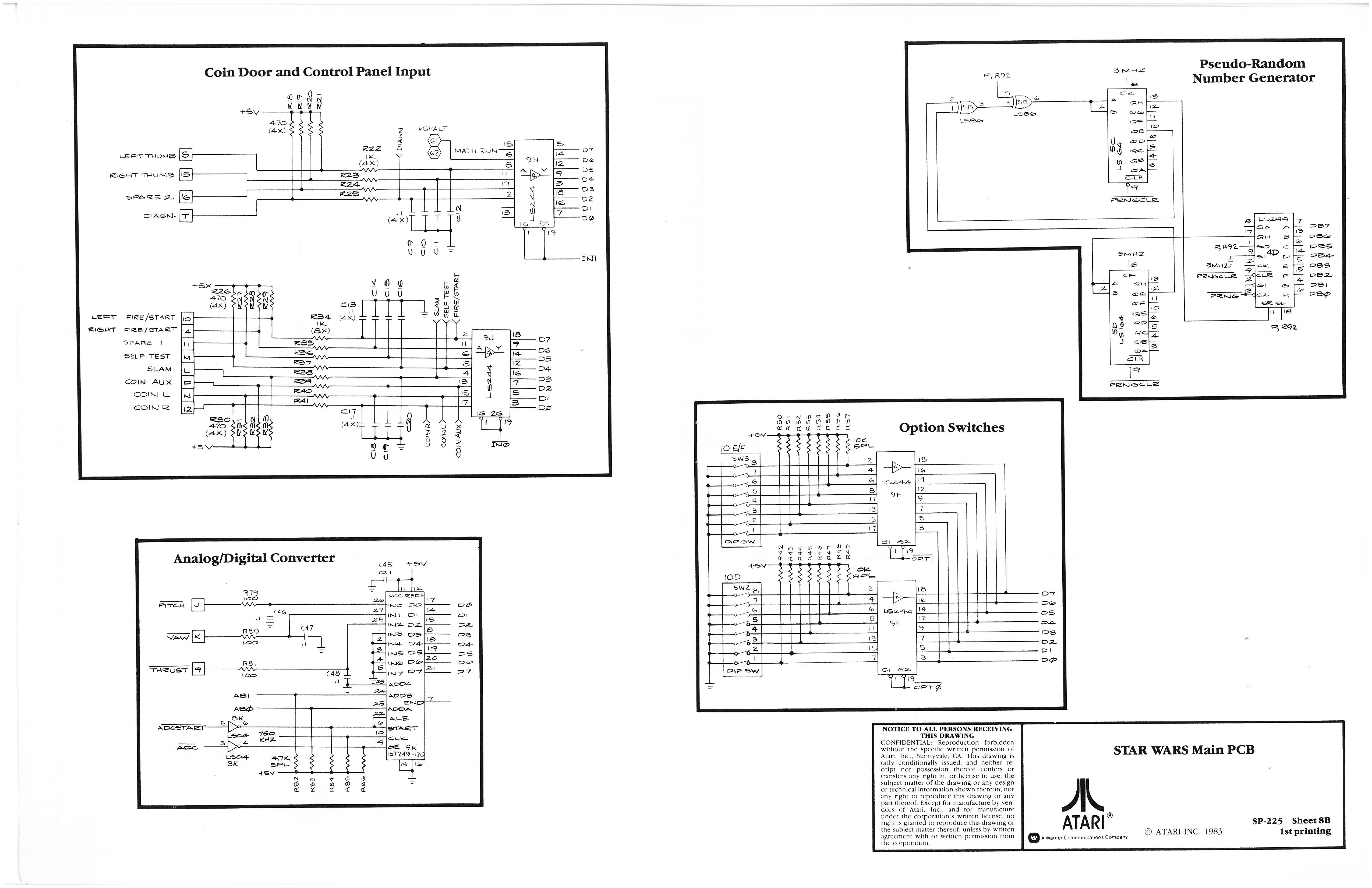

Page 8B | S/W Main PCB: Coin Door & Control Panel I/P, Pseudo-Random No. Gen., A/D Converter, Option Switches |

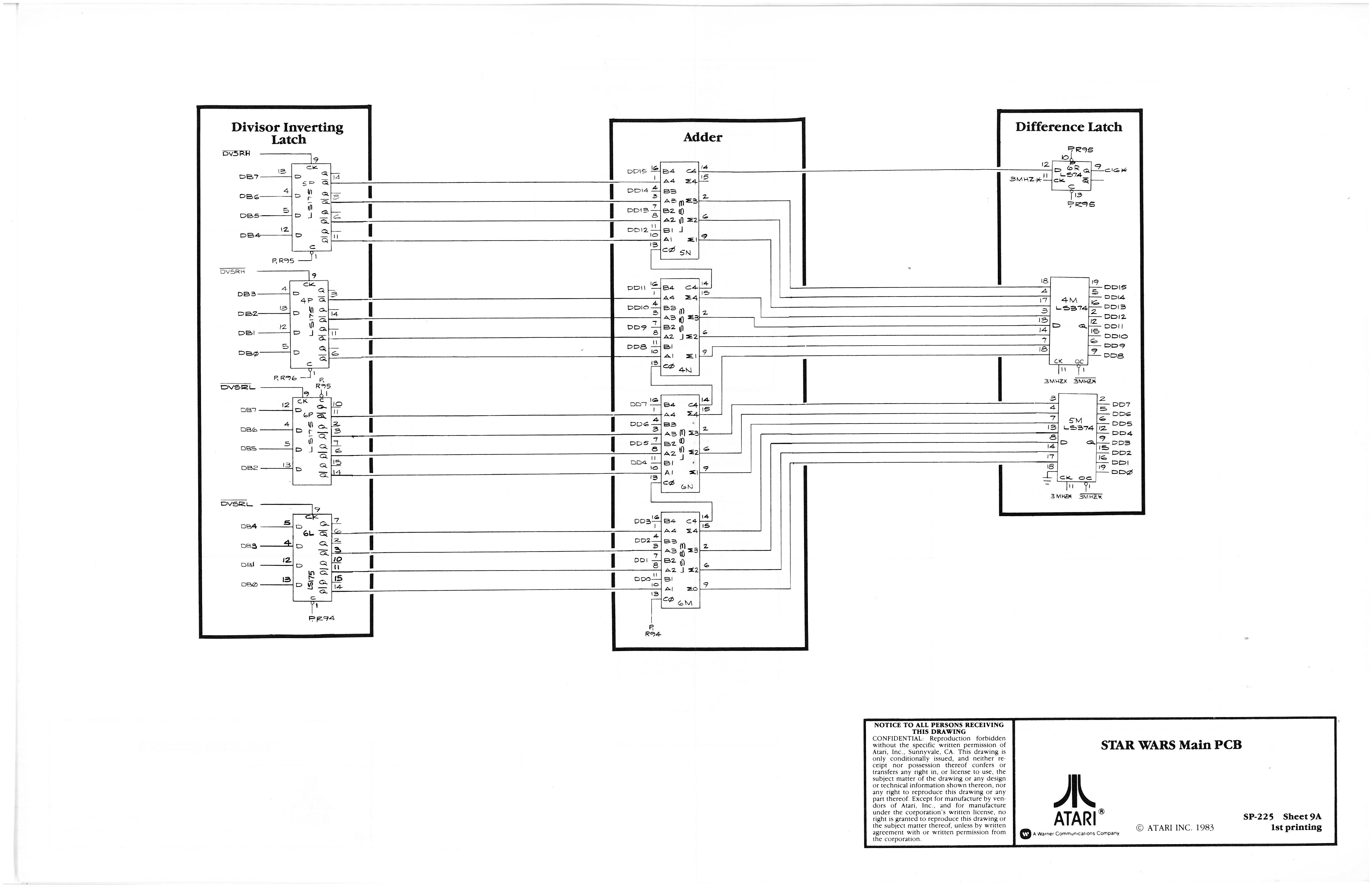

Page 9A | S/W Main PCB: Divisor Inverting Latch, Adder, Difference Latch |

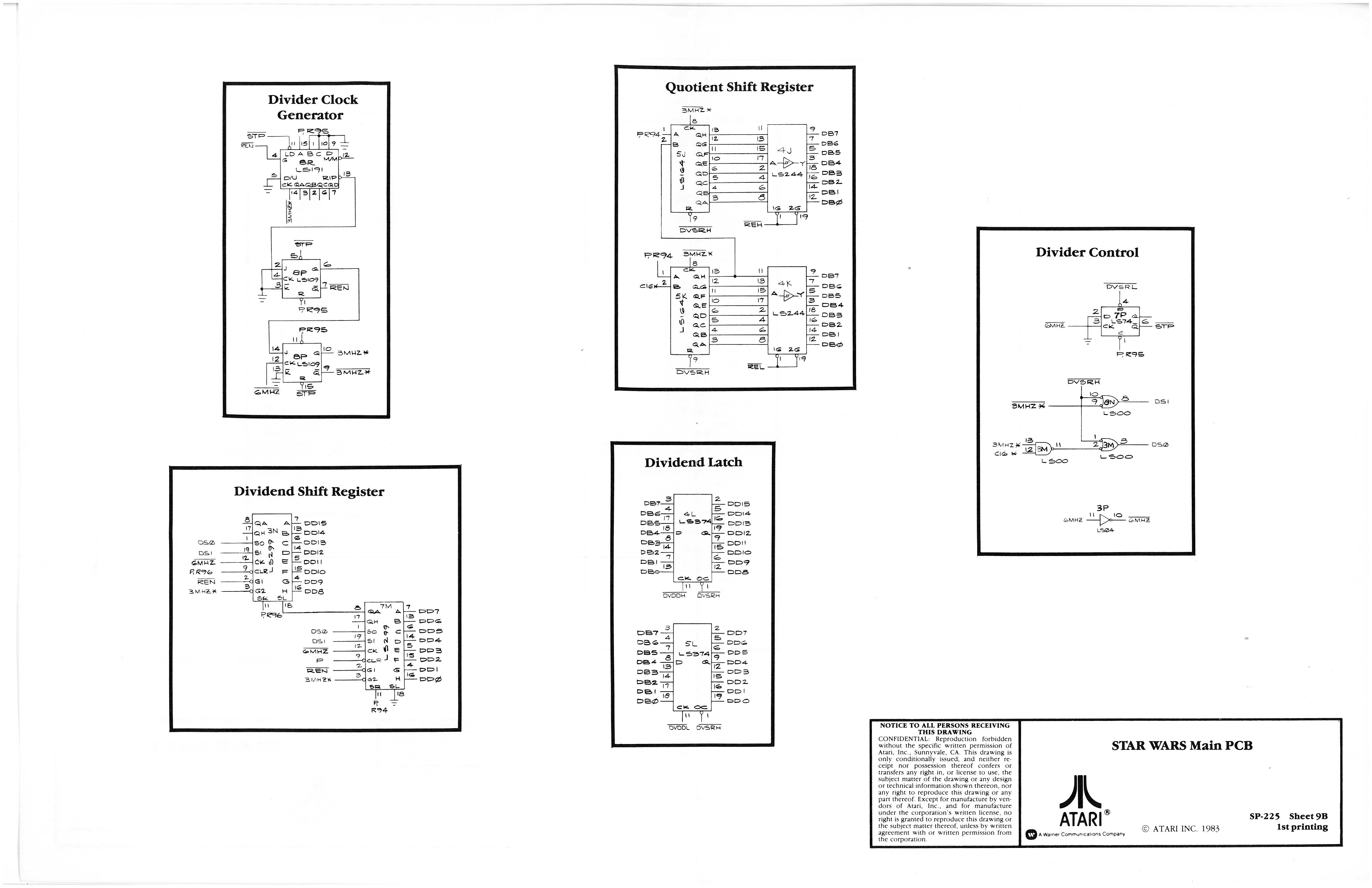

Page 9B | S/W Main PCB: Div. Clock Gen., Quotient Shift Reg., Div. Shift Reg., Div. Shift Reg., Div. Control, Div. Latch |

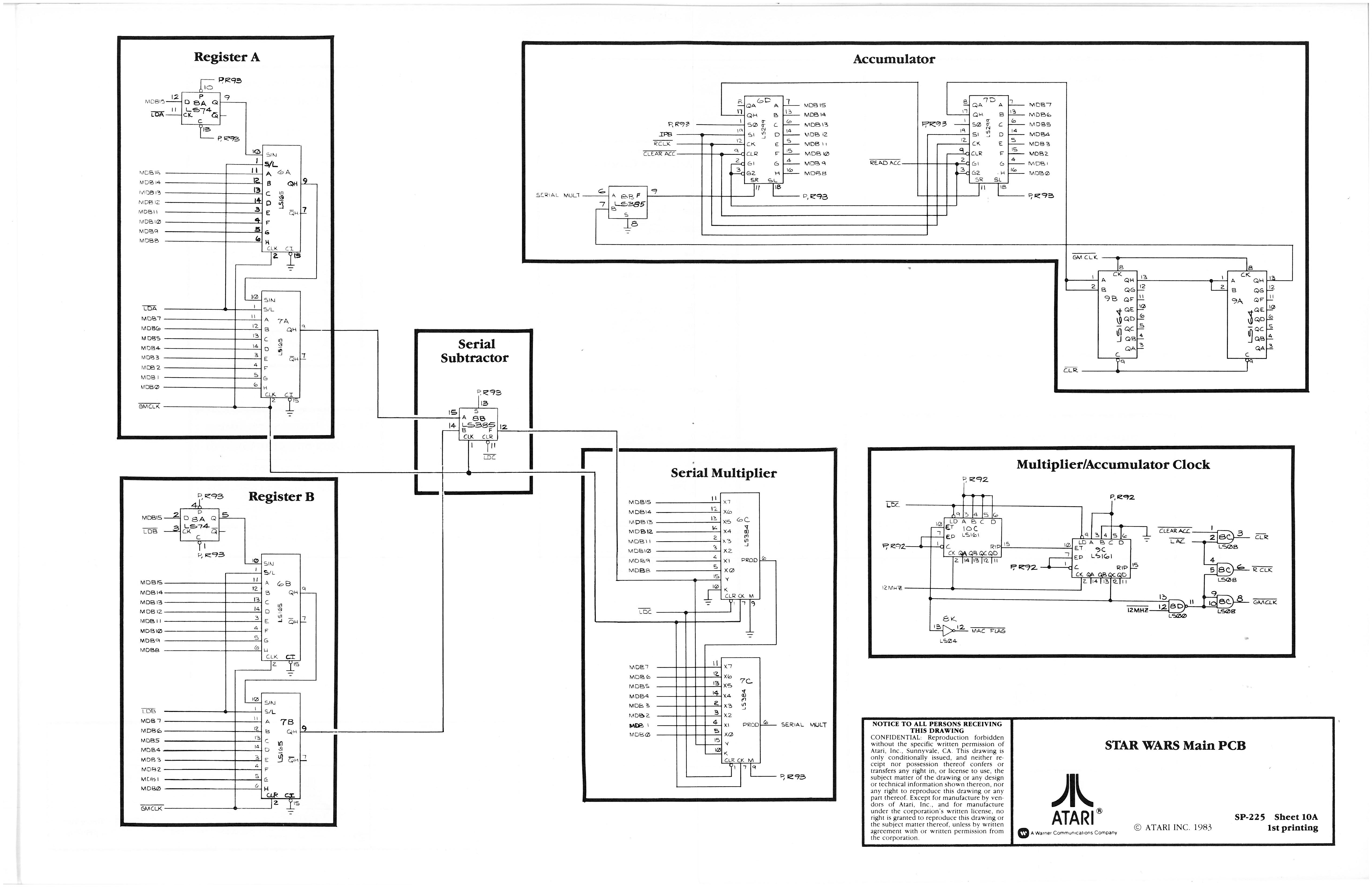

Page 10A | S/W Main PCB: Reg. A, Reg. B, Accumulator, Serial Subtractor, Serial Mult., Mult./Accum. Clock |

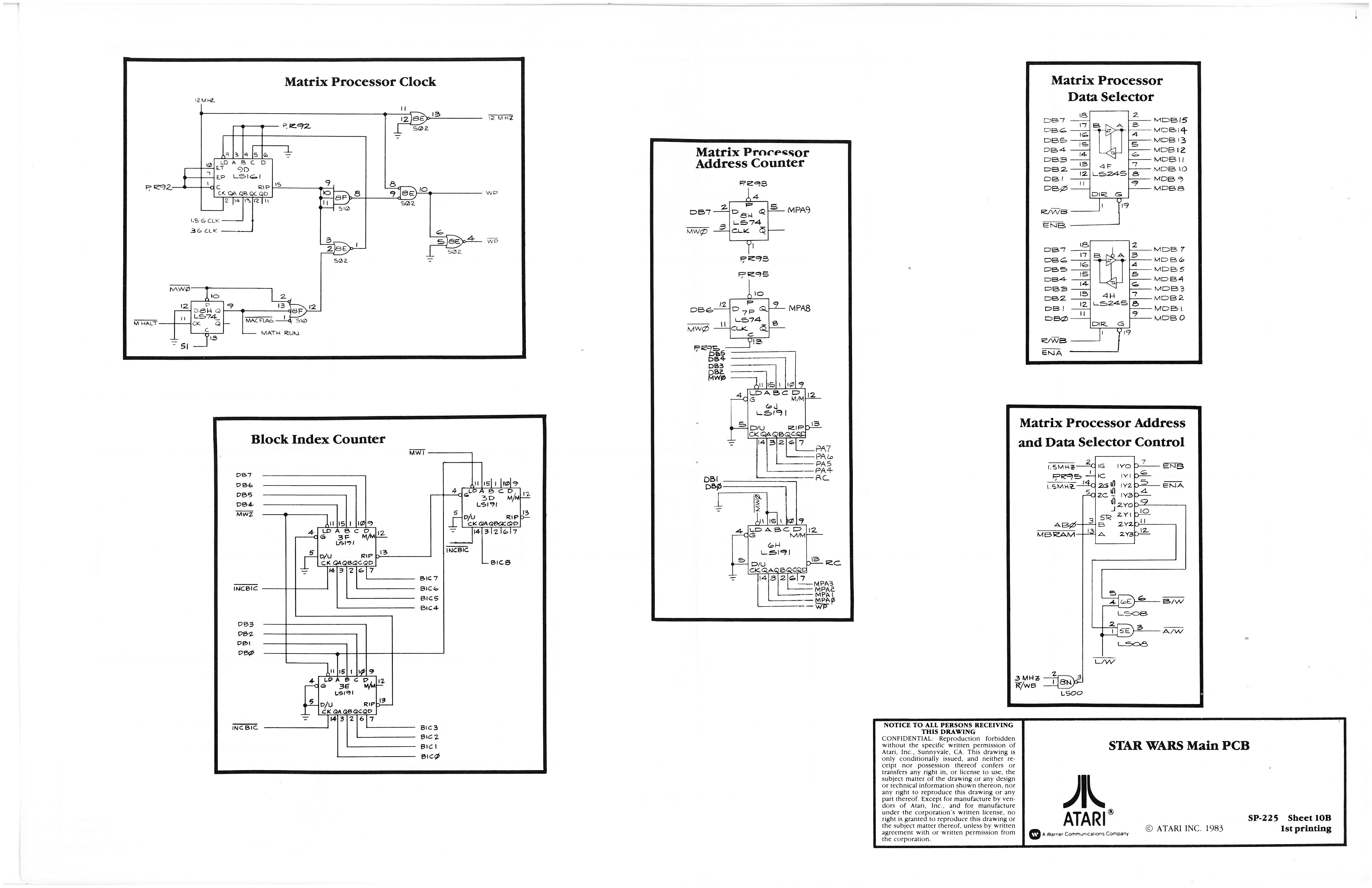

Page 10B | S/W Main PCB: Matrix Proc. Clock, Matrix Proc. Address Counter, Block index Counter, Mat. Proc. Address & Data Selector Control |

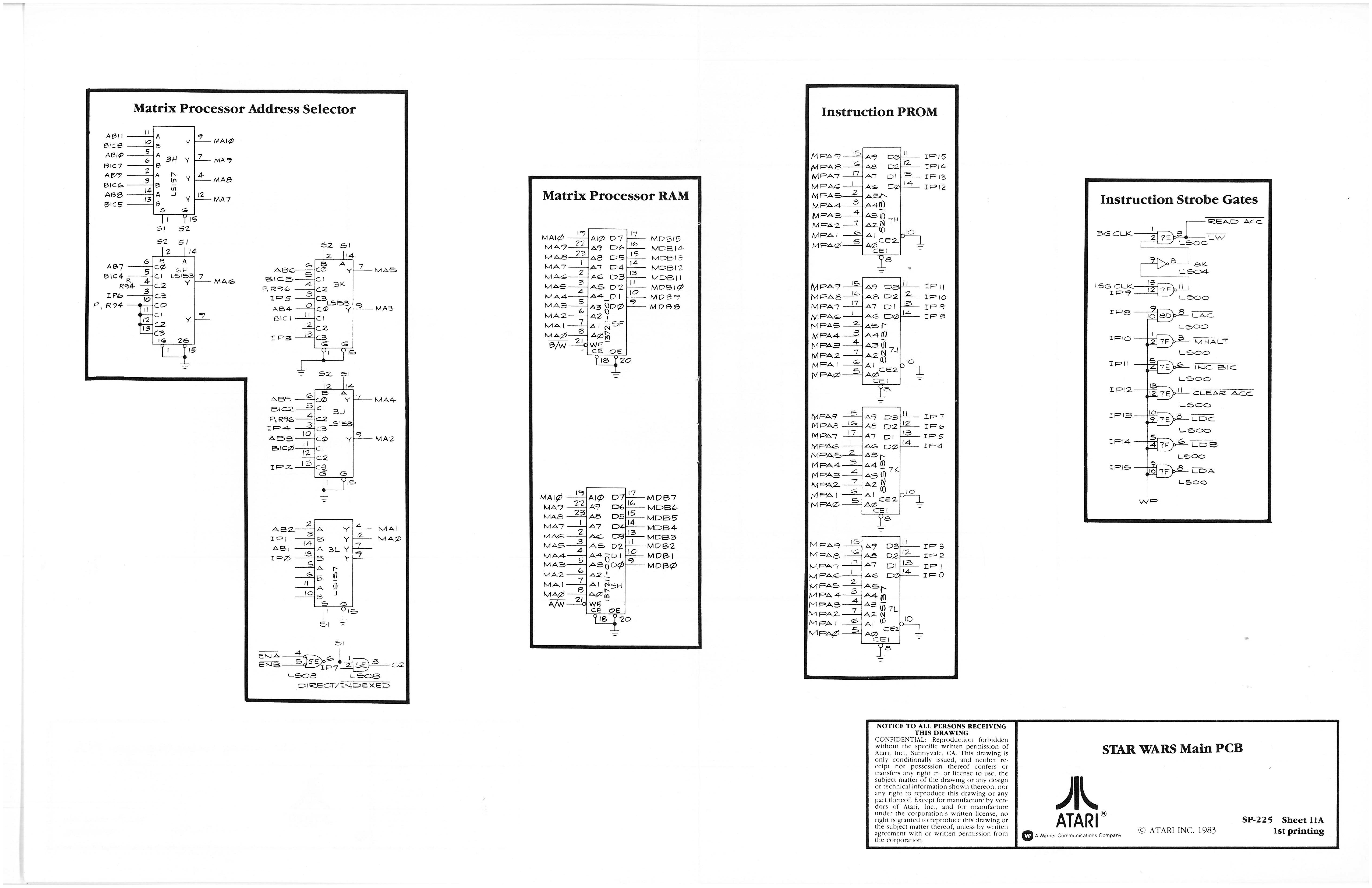

Page 11A | S/W Main PCB: Matrix Proc. Address Selector, Matrix Proc. RAM, Instruction PROM, Instruction Strobe Gates |
Page 11B | S/W Analog Vector-Generator PCB: Power Input |

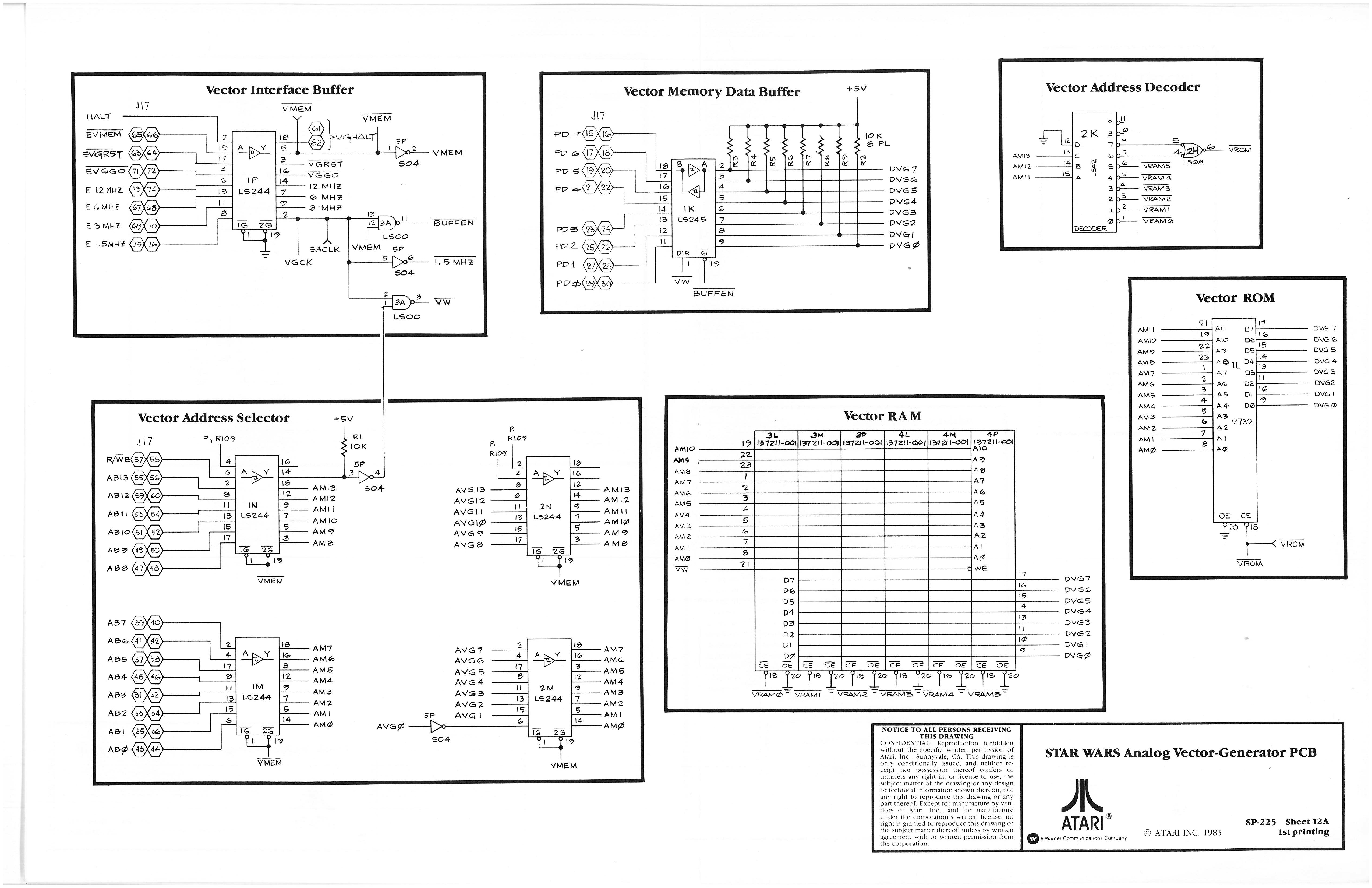

Page 12A | S/W AVG PCB: "Vector" Prefix on all . . Interface Buffer, Memory Data Buffer, Add. Decoder, Add. Selector, RAM, ROM |

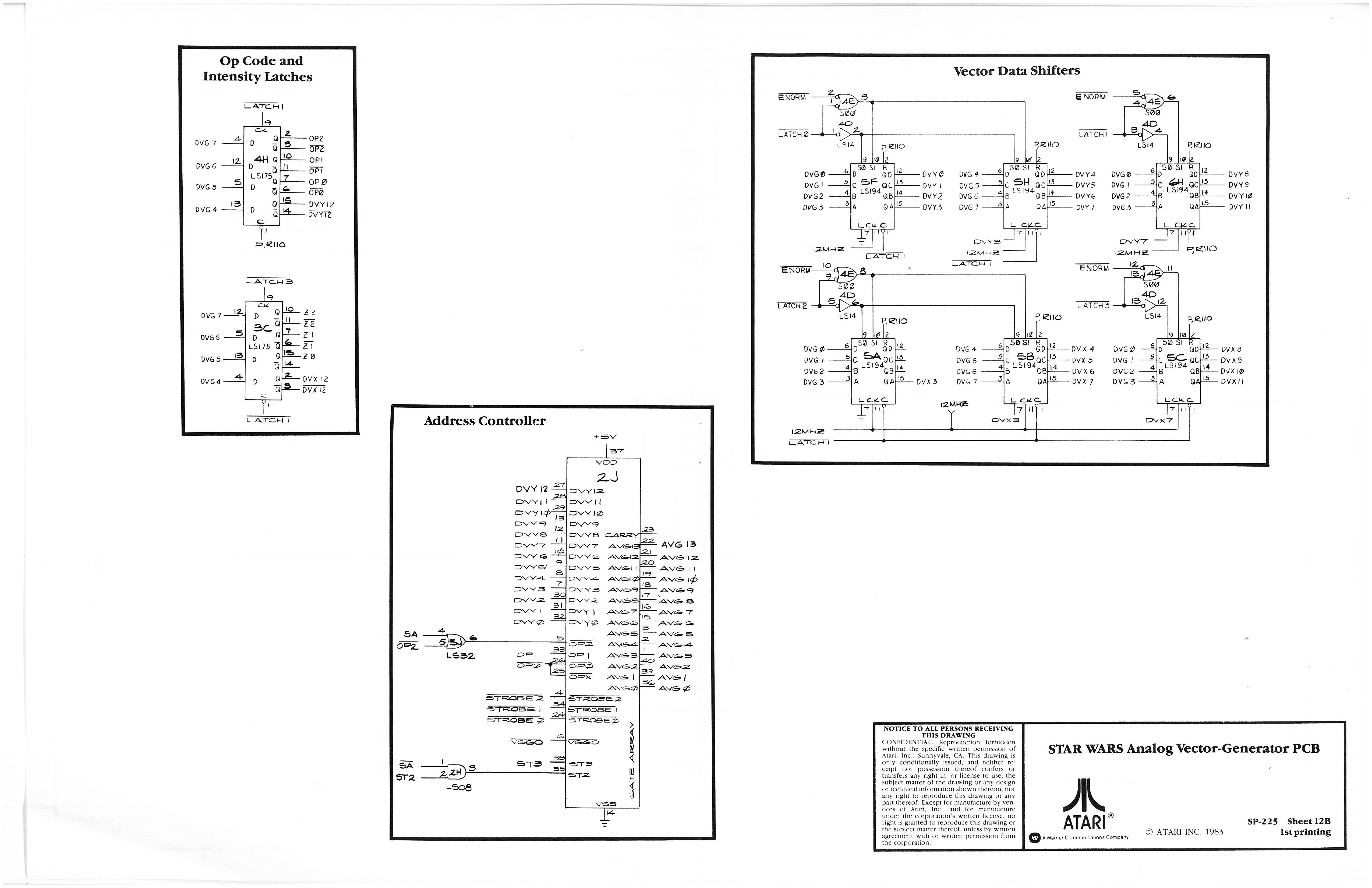

Page 12B | S/W AVG PCB: Op Code & intensity Latches, Vector Data Shifters, Address Controller |

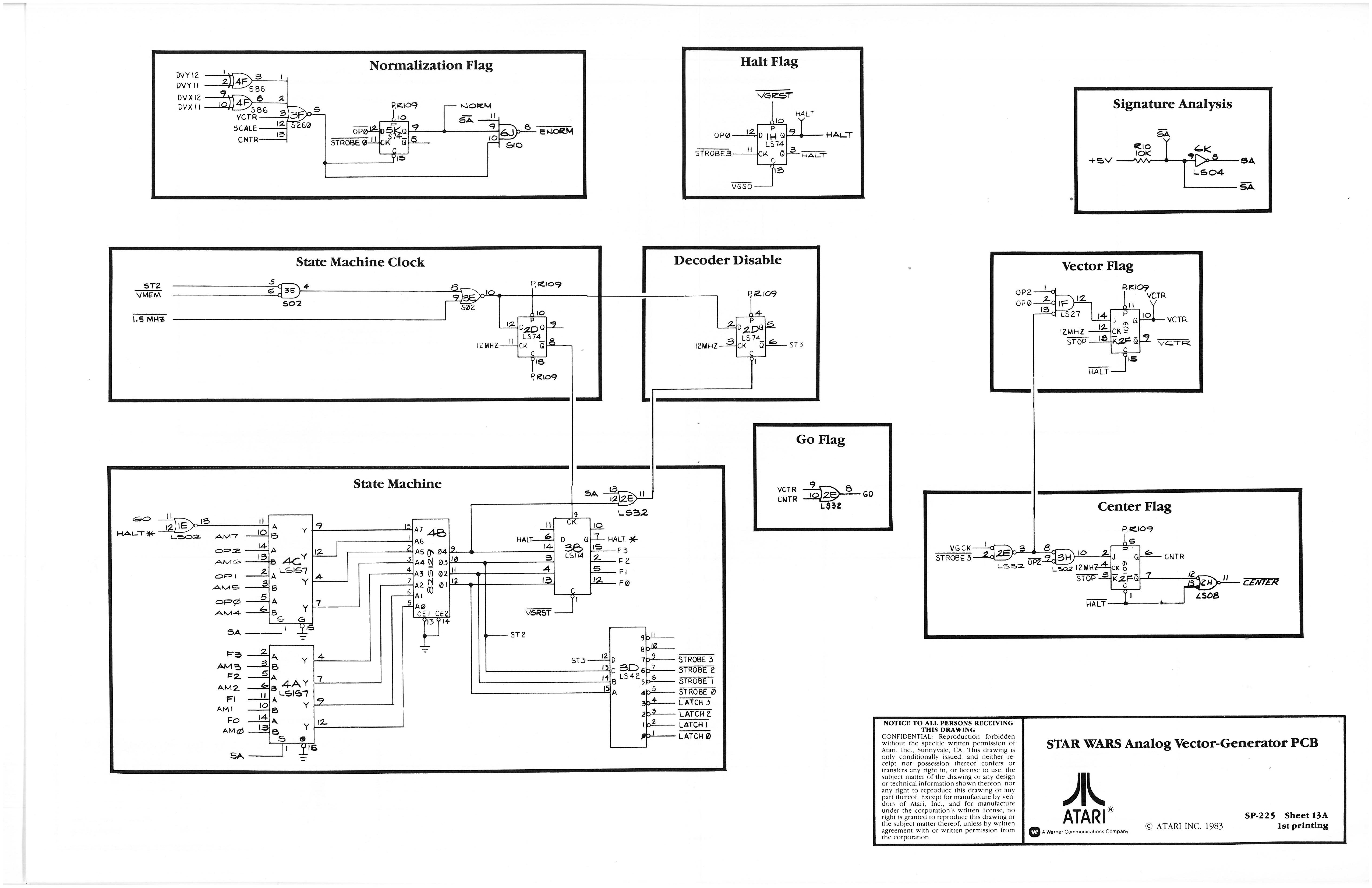

Page 13A | S/W AVG PCB: Normalization Flag, Halt Flag, Signature Analysis, State Mach. Clock, Decoder Disable, Vector Flag, Go Flag, State Mach., Center Flag |

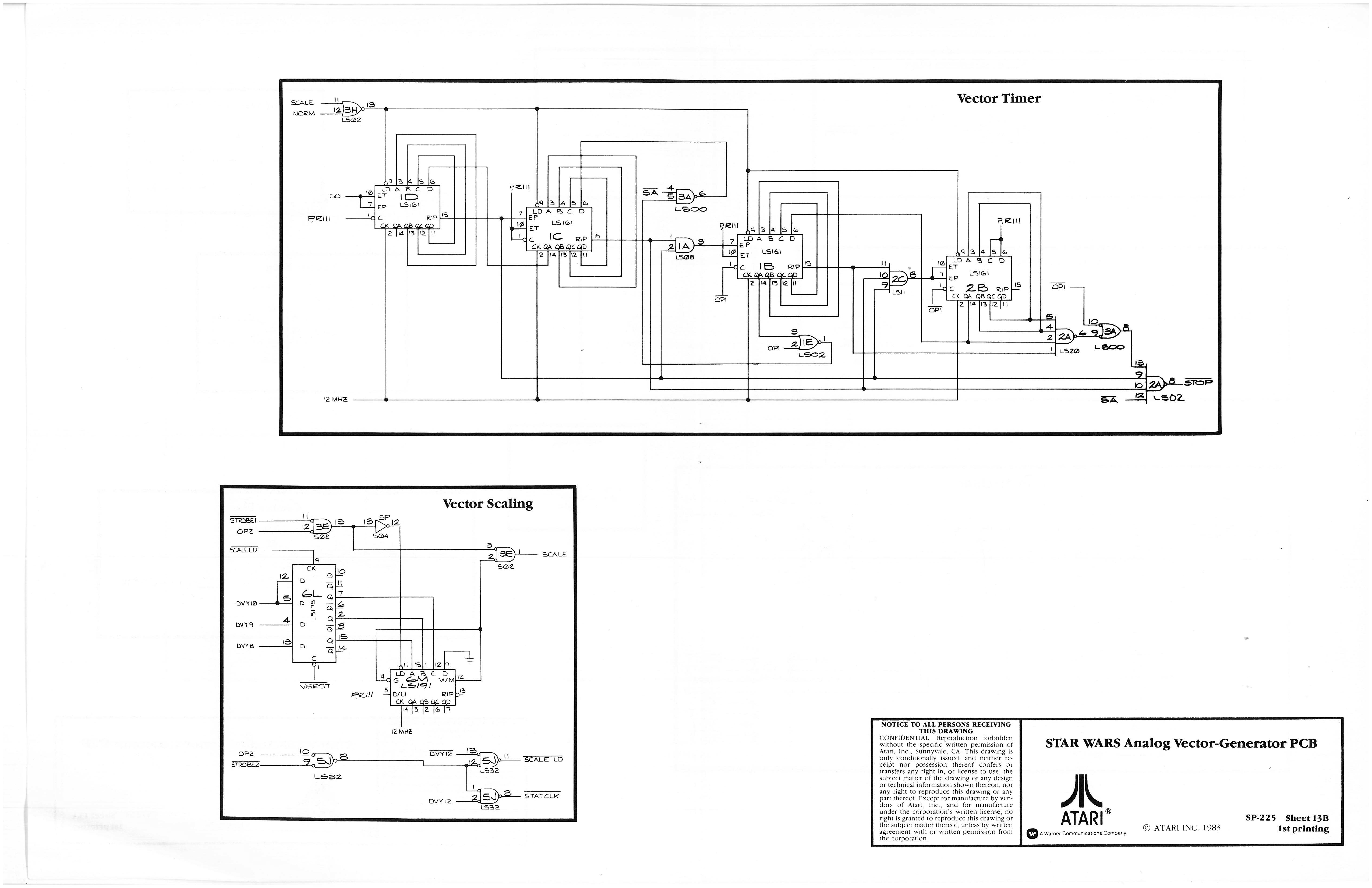

Page 13B | S/W AVG PCB: Vector Timer, Vector Scaling |

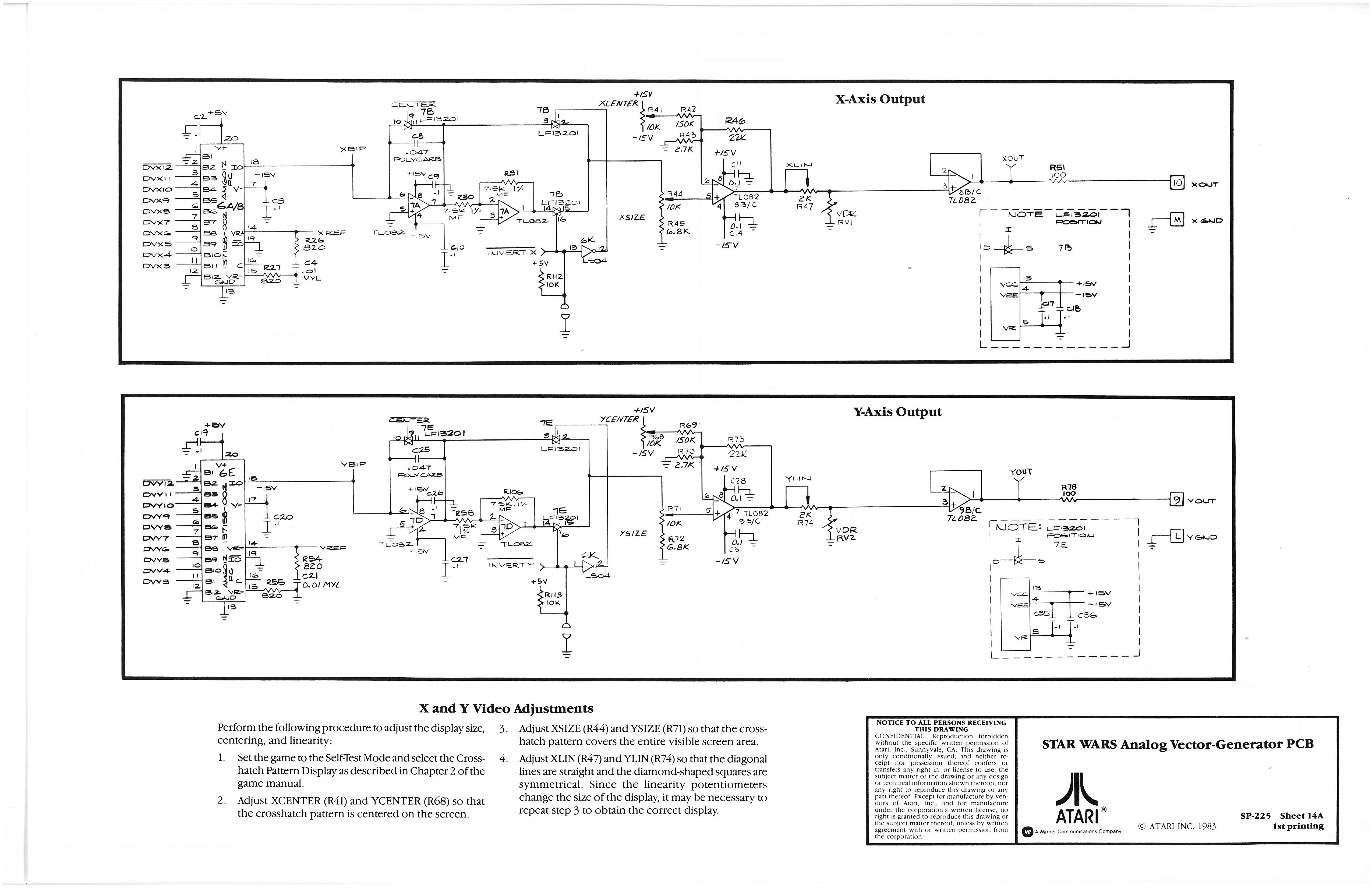

Page 14A | S/W AVG PCB: X-Axis Output, Y-Axis Output, X & Y Video Adjustments |

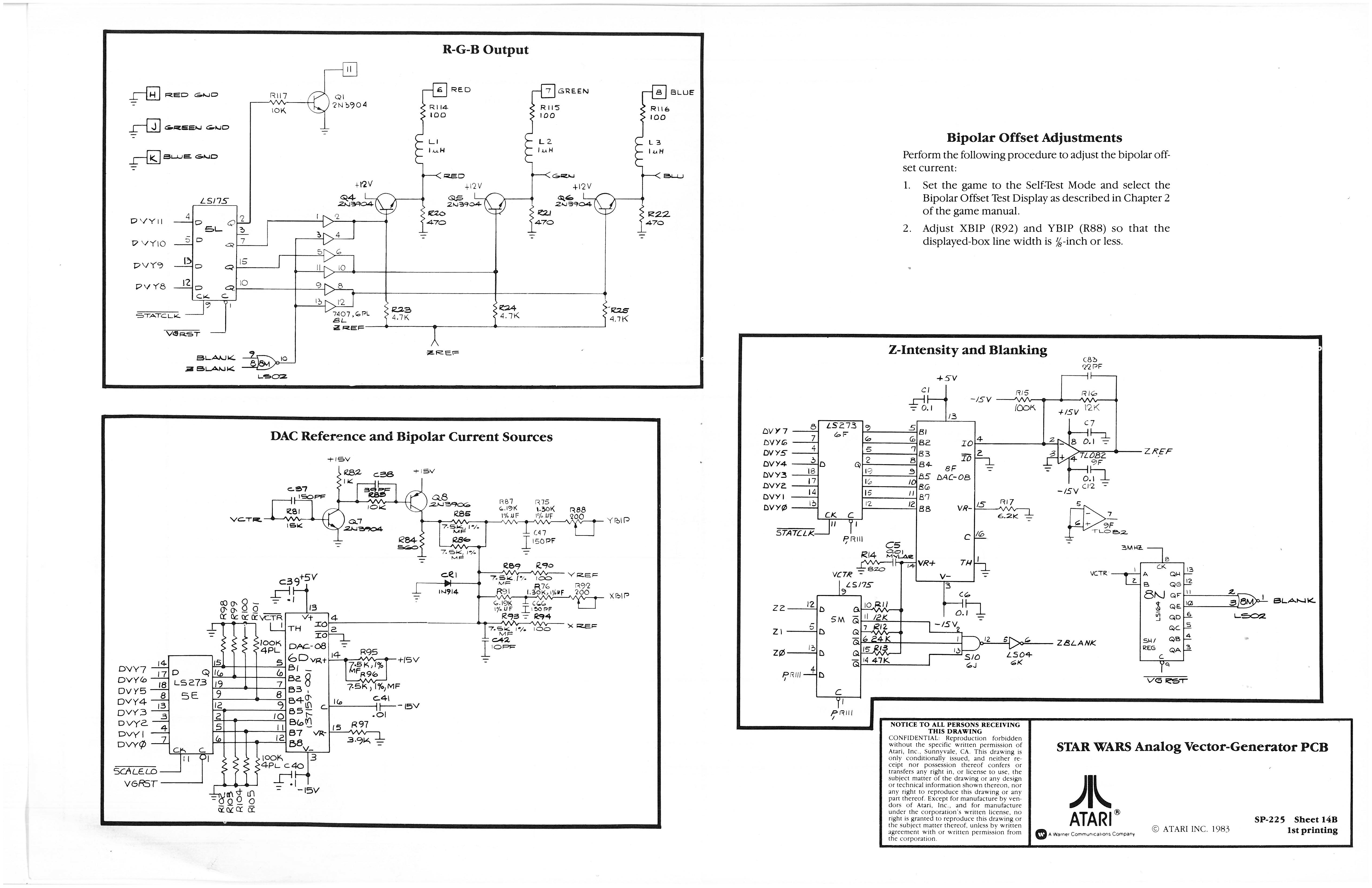

Page 14B | S/W AVG PCB: R-G-B Output, Z-Intensity & Blanking, DAC, Ref. & Bipolar Current Sources |
Page 15A | S/W Sound PCB: Reset Pulse Extender, Parallel I/face with Full Handshaking, Microprocessor, Interface Add. Decoder, Interface Flag Reader |

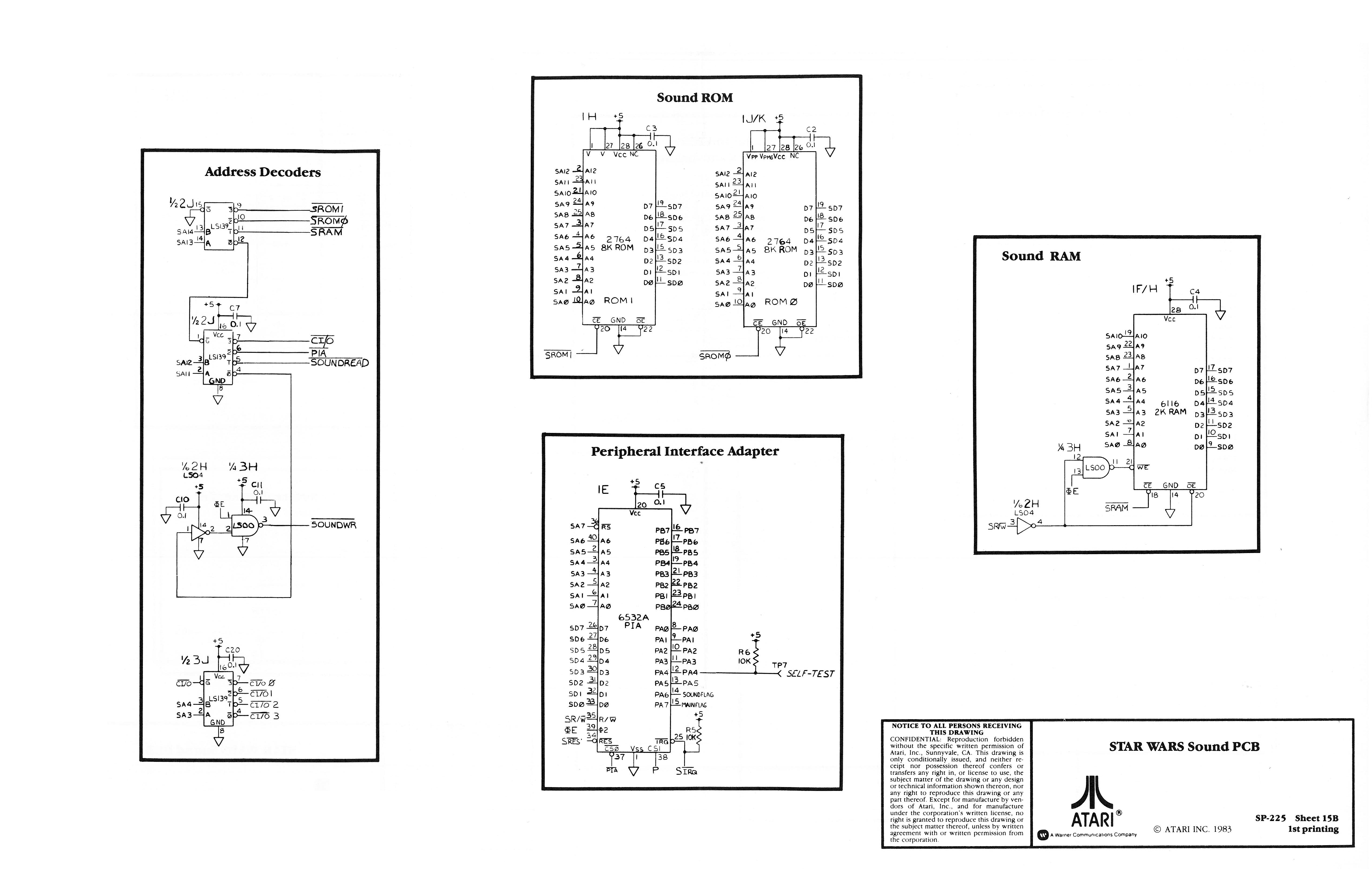

Page 15B | S/W Sound PCB: Add. Decoders, Sound ROM, Sound RAM, Peripheral Interface Adapter |

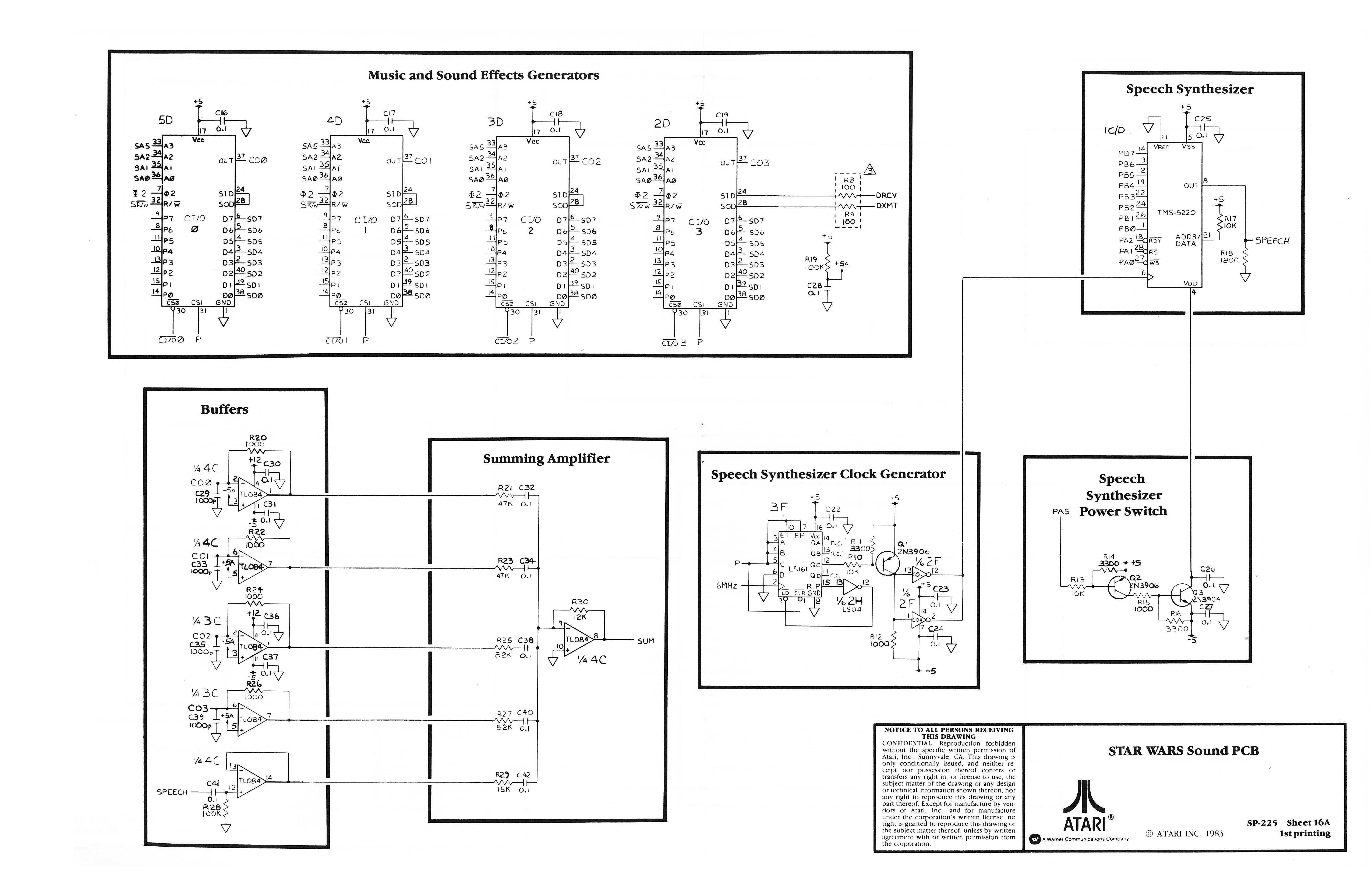

Page 16A | S/W Sound PCB: Music & Sound Effects Gens., Speech Synth., Buffers, Summing Amplifier, Speech Synth. Clock Gen., Speech Synth. Power Switch |

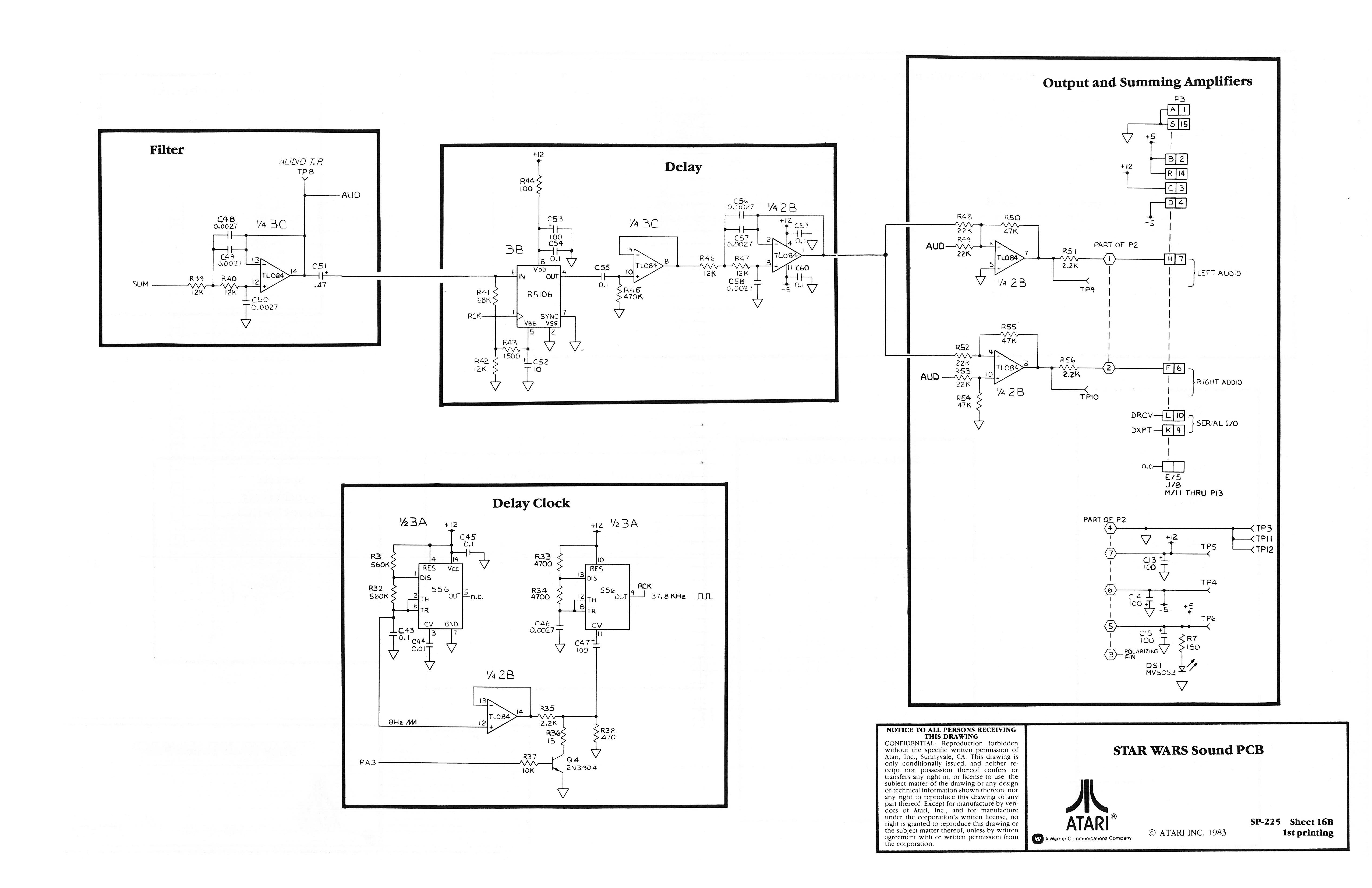

Page 16B | S/W Sound PCB: Filter, Delay, Output & Summing Amplifiers, Delay Clock |

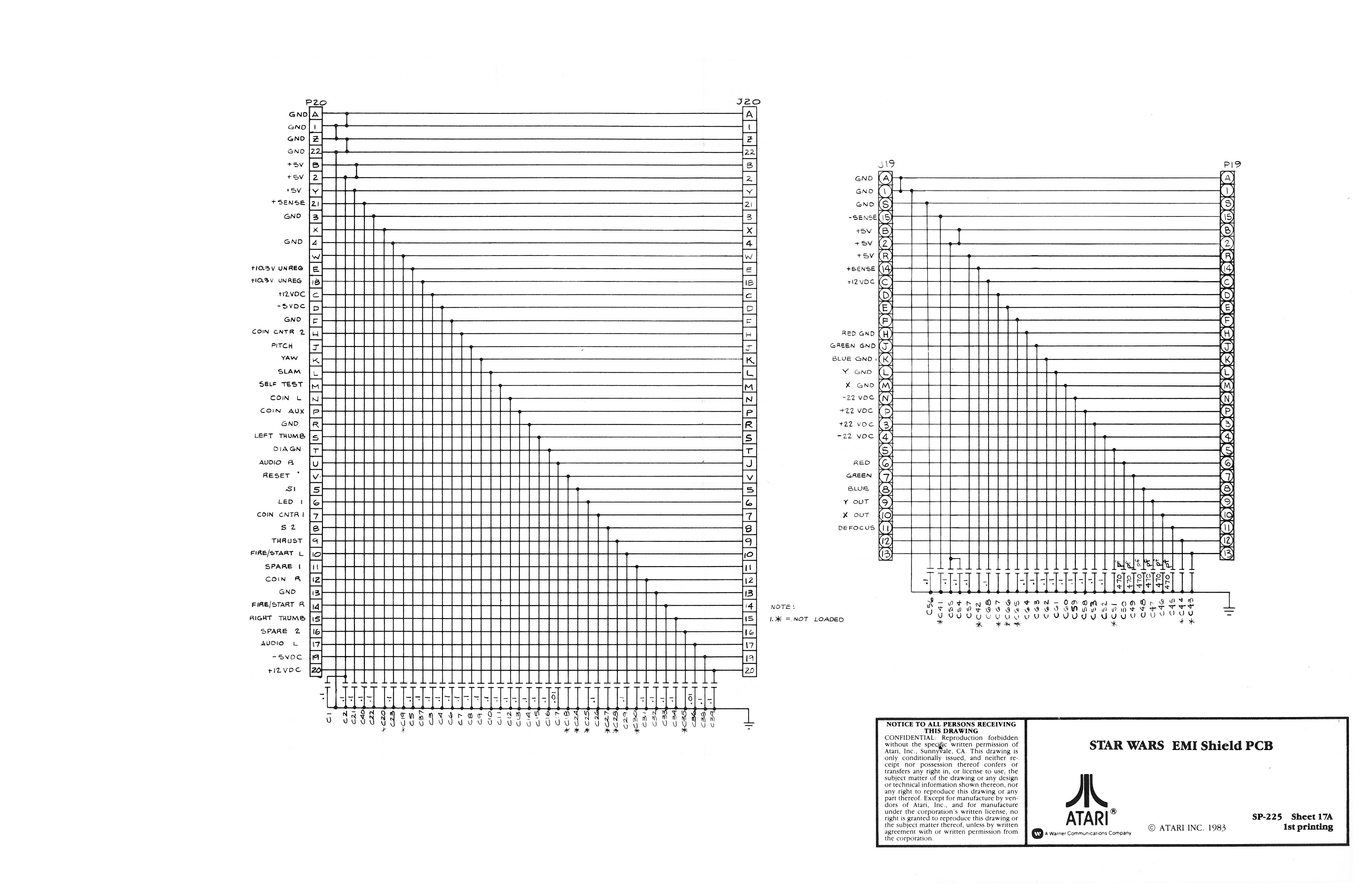

Page 17A | S/W EMI Shield PCB |

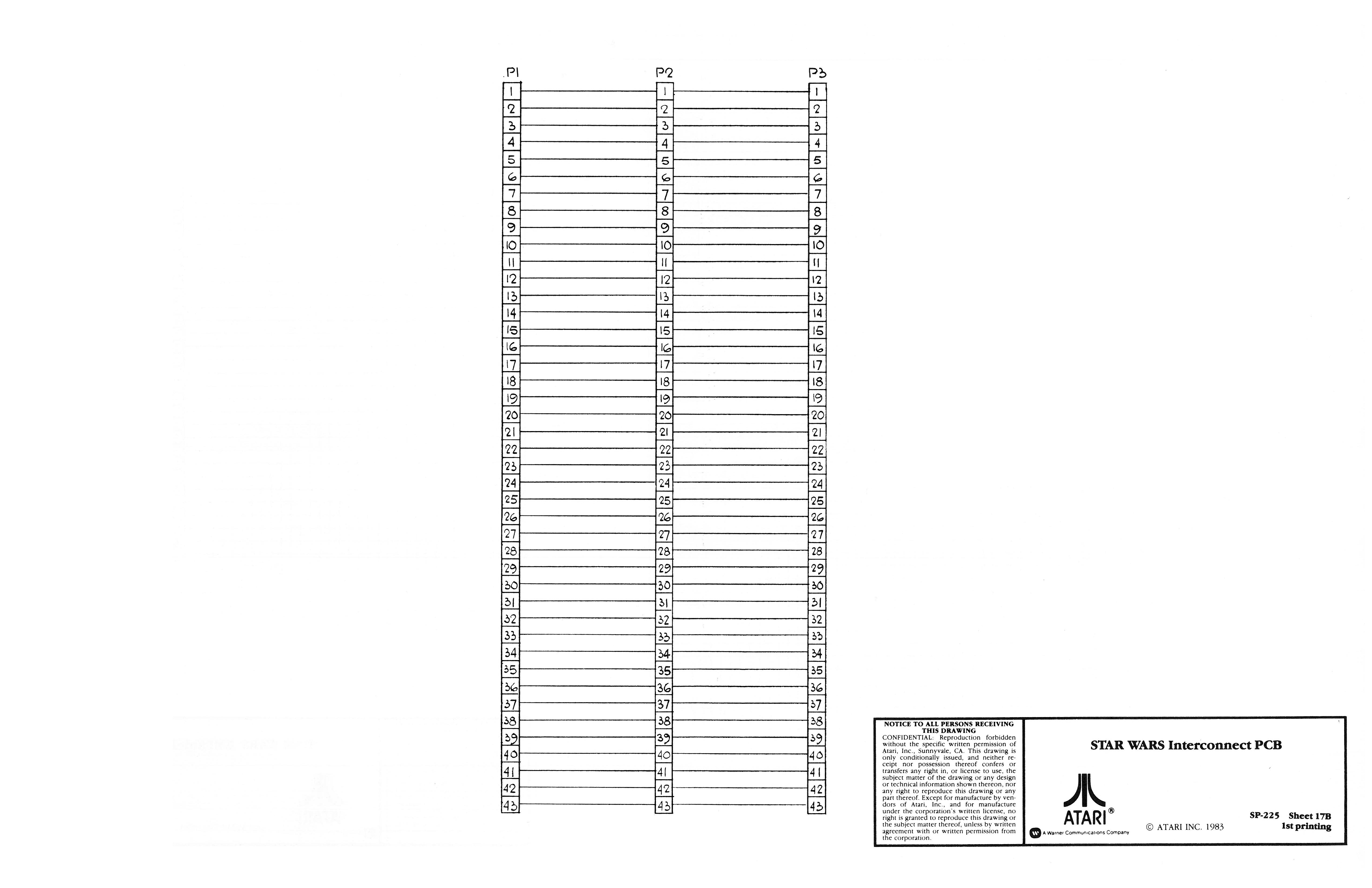

Page 17B | S/W Interconnect PCB |
Page 18A | S/W Color X-Y High-Voltage PCB (Green) |

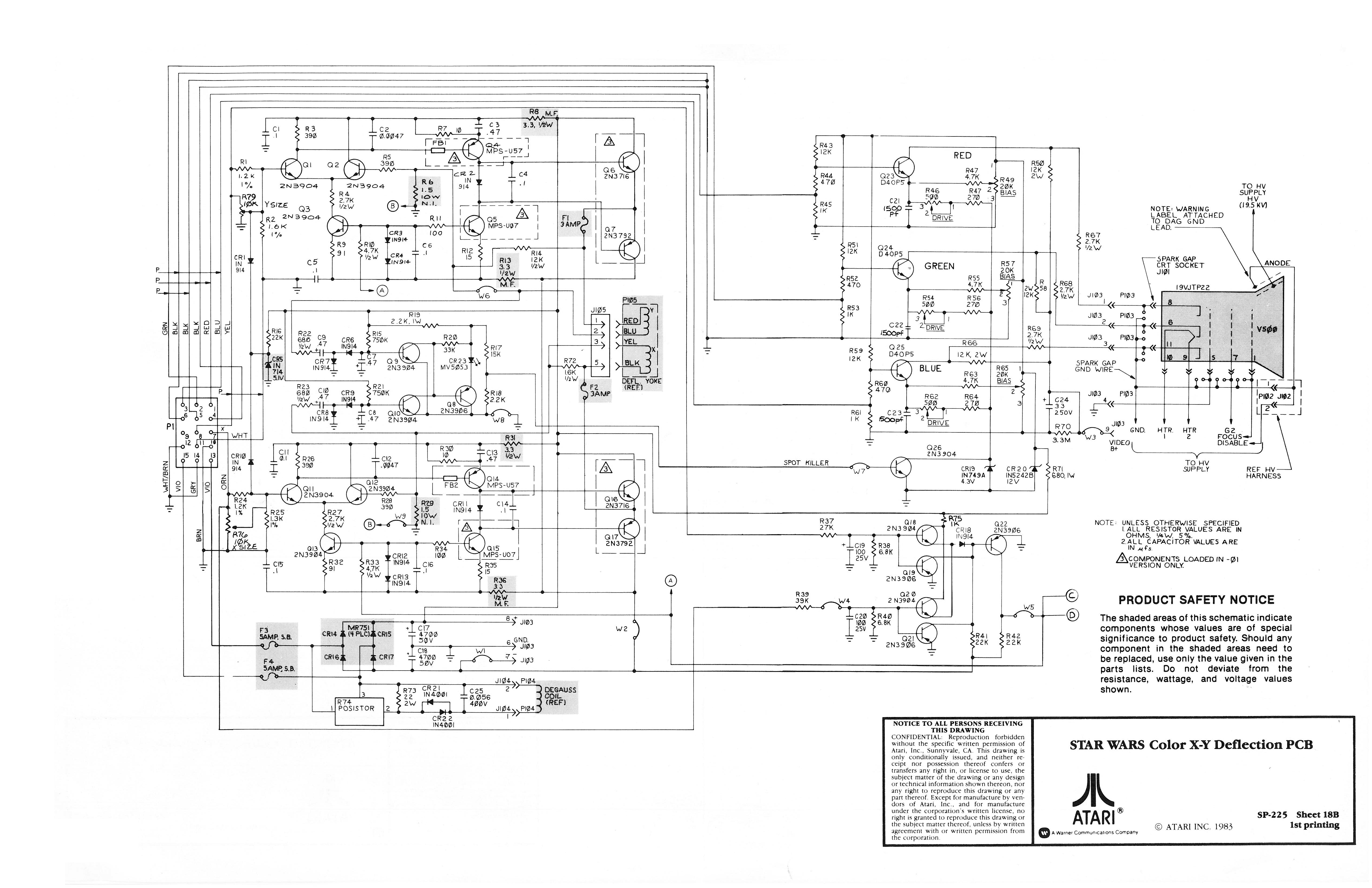

Page 18B | S/W Main PCB: X-Y Deflection PCB (Green) |
