Dezbaz's LAI B&W Chassis Vector Page 2023

My write up on the LAI Awesome Chassis	<<Back to My Arcade Links <<	Dez's Lunar Lander Links Page

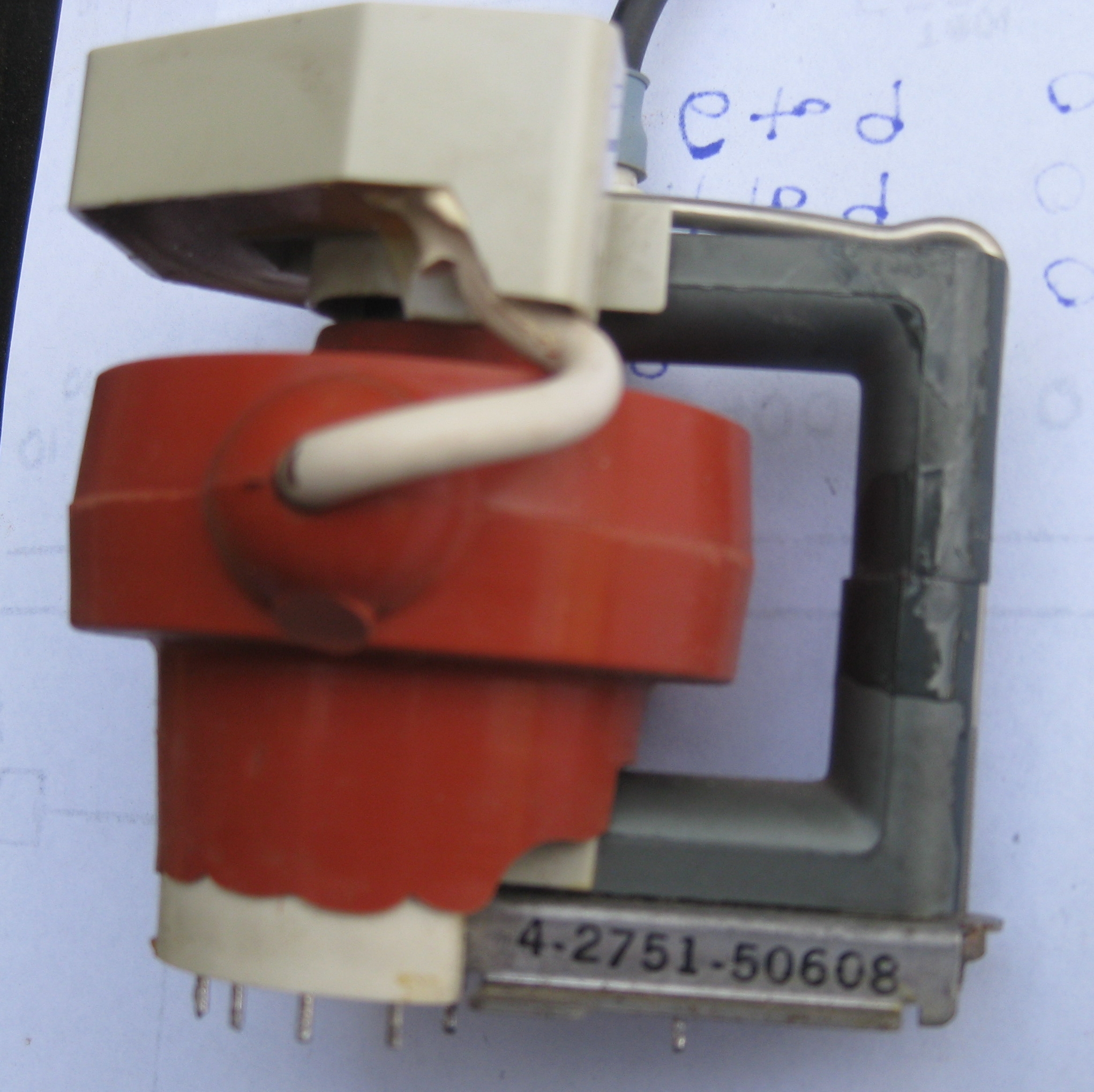

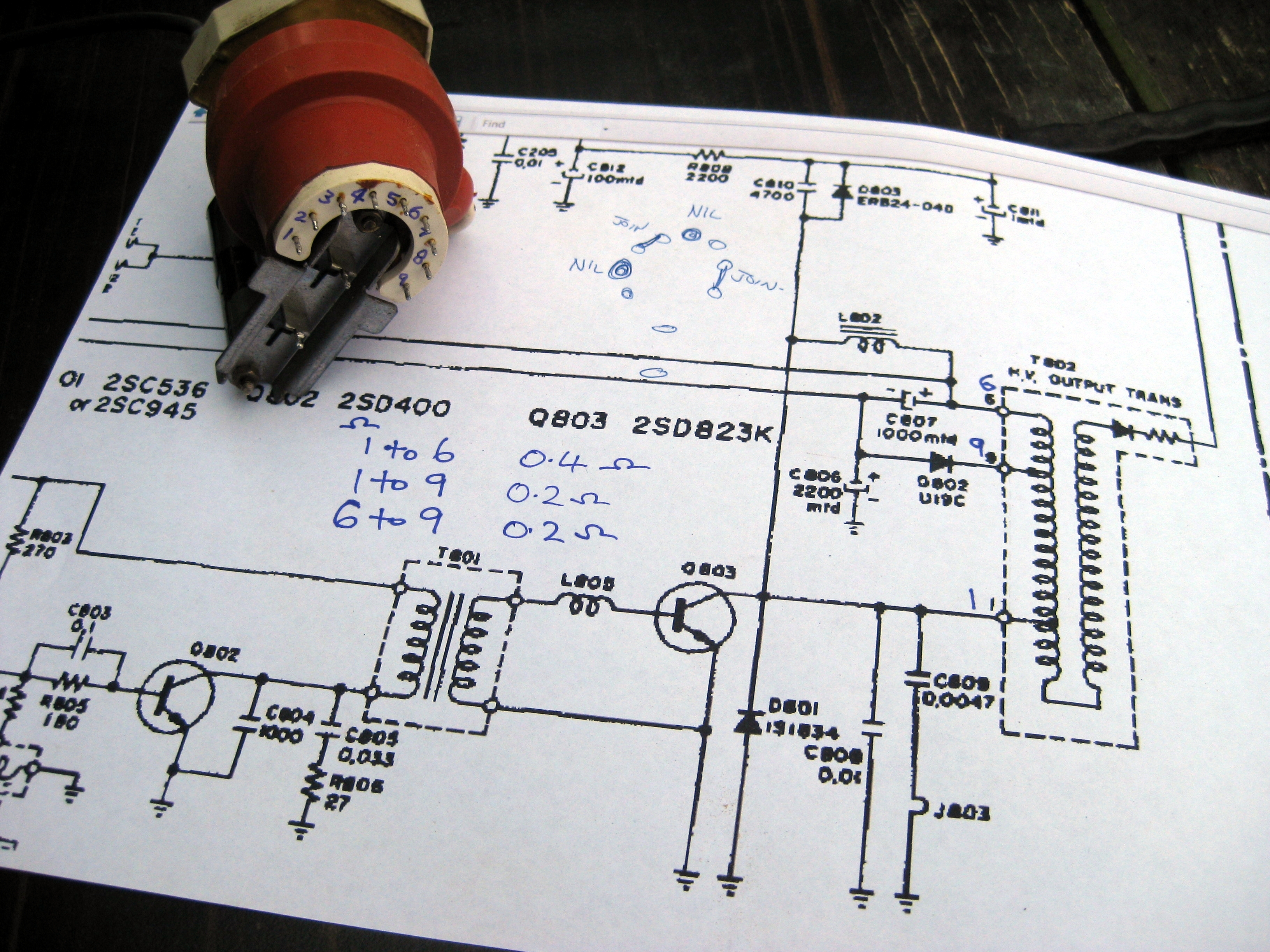

		Flyback for LAI XY chassis
My Complete Chassis Parts List (Including Suppliers)
LAI User Manual (Including Schematics)

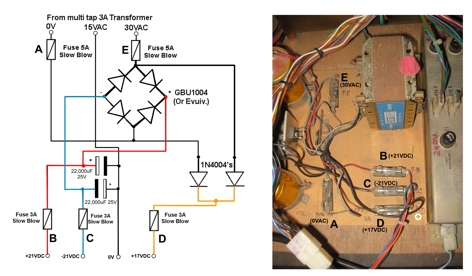

Auxiliary Power Supply Diagram

Unusual symptoms, unusual outcome - Deflection YOKE (KLOV)



		Click on Pic below to supersize (Asteroids PCB With Multi Kit to be installed on a Rev04 board)
Supply Voltages needed for LAI Chassis



	Vector Voltages Incl. LAIs What's my monitor chart / Pics
	AR Modification
Audio Regs & Transformers to suit XY's (Elektronforge)	Andy's Arcade AR sense Modification
	Bit_Slicers take on AR sense Modification
	Lunar Lander PCB detailed IC chart
	Dez's Cabinet Repro Project KLOV



		Replacing a monitor's Anode HV Cup Thread (KLOV)
		Custom Colour pic LAI KZ Schematic Diagram

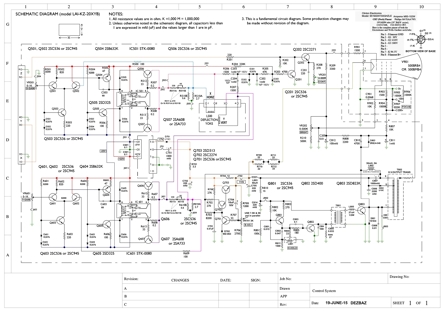

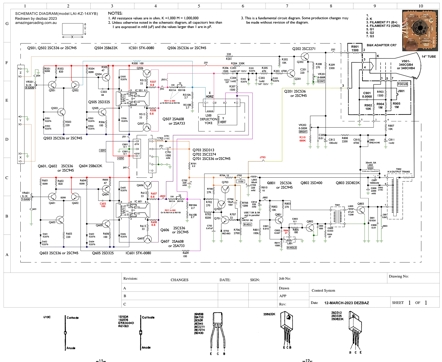

	Whole Cab. Lunar Lander Schematic LAI (Australian) )	-------------------------------------------------------------- Reworked LAI-KZ-14XYB Schematic Below (Parts in red are different to the 19/20" Chassis, Reworked 2023) Reworked LAI-KZ-20XYB Schematic Below (Reworked 2023)

B&W Vector Monitor from a TV thread
Aussie Arcade Threads
XY B&W Monitor Pool of knowledge Thread
Replacing a monitor's Anode HV Cup Thread	Removed parts for the "Y" Axis (These parts were never fitted, but if they were they would look like this) The same circuit is also removed on the "X" Axis
Interest thread: Making LAI B&W monitor pot adjustment boards (5 x pots)
